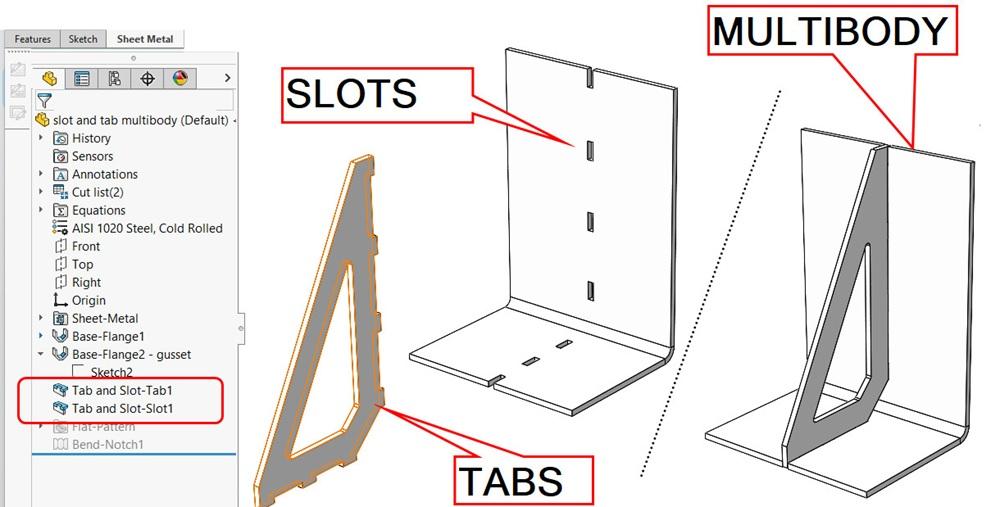

FIGURE 1. A gusset may be positioned in a bracket with tabs and slots. One might mannequin these options as cuts and extrudes with the controls constructed into the sketches, or one might use the Tab and Slot instrument for far more versatile management.
Editor’s Notice: Supporting CAD information and graphics for this column can be found for obtain.
A sample of tabs and slots may be created with controls for amount, dimension, form, and varied offsets for location and tolerance. Alternatively, tabs and slots could possibly be modeled as cuts and extrudes with their controls constructed into their sketches, however that’s the longhand method—as of the 2025 model, anyway.
Determine 1 has a pair views of a venture that’s utilizing the Tab and Slot instrument (discovered within the Sheet Metallic menu). The view on the appropriate exhibits the our bodies collapsed; to its left is an exploded view of this multibody (prone to be welded) half. This identical trick will work in an meeting.
The tabs are seen on the gusset; the slots are seen within the bracket. The Tab and Slot instrument permits straightforward management over options akin to slots that play properly with their tabs.
We’re not right here to promote software program, however a part of the enjoyment of utilizing this specific model of mainstream 3D CAD is that new capabilities don’t require a lot of a studying curve. In the event you’re acquainted with the consumer interface for patterns, the Tab and Slot instrument additionally will really feel acquainted.
Earlier than analyzing a few of these Tab and Slot controls, we take a brief detour to take a look at a little bit of tedium that’s much less tedious circa 2025—dangling sketch relationships.
Restoring Joyful Relationships
Determine 2 exhibits the 2D sketch that was used to mannequin the gusset. It’s positioned on the midplane of the bracket. Of specific be aware are two sketch relationships—line segments which can be coincident with the corners of the sheet metallic bracket. If the bracket adjustments dimension, the gusset’s dimension will comply with due to these sketch relationships. It is a fantastic habits throughout product improvement.
To imitate actual life product improvement, after the venture reached the completion stage proven in Determine 1, nook therapy was added to the bracket. This created an issue to unravel, not associated to Tab and Slot in any means. It’s, nonetheless, an issue that always arises as a CAD mannequin evolves.
Determine 3 exhibits our pretty new corners on the bracket. For these acquainted with this make of 3D modeling software program, they know that, when an terrible yellow seems within the Characteristic Supervisor, there may be bother. On this occasion, the yellow hue signifies an issue with the sketch for the gusset. These new nook chamfers eradicated pointy corners that had been in use by the sketch for the gusset (see Determine 2). The sketch for the gusset should now be repaired to ensure that the mannequin to reliably rebuild.
Turning to the appropriate in Determine 3, the gusset sketch is being edited. The Show/Delete Relations instrument is in use. The 2 sketch relationships are dangles attributable to eliminating the corners these sketch relationships used to have a relationship with, because it had been.
Notice the button labeled Restore all Dangling. Click on on that button for fast gratification, or not less than to get the software program to aim to restore the dangling relationships. Previous to the button’s existence, dangling sketch relationships could possibly be repaired separately. The creator finds this button to be definitely worth the worth of admission.
FIGURE 2. The sketch for the gusset has coincident sketch relations with the bracket. These relations trigger the gusset to comply with future adjustments in form to the bracket. (That is parametric modeling as a blessing.)
Tabs and Slots as Groupies
Returning to controls for Tabs and Slots, Determine 4 exhibits a number of of the parameters for the Tab and Slot function. The 90-degree bend on this bracket requires two separate tab and slot rows, and so they could possibly be modeled as separate entries within the Characteristic Supervisor. As a substitute, we put every row into its personal group.
To place it one other means, the Group function permits a single Tab and Slot entry within the Characteristic Supervisor to retain the controls for a number of tab and slot patterns. This group habits is much like the best way the consumer interface for Weldments operates; that’s to say, teams of structural components may be managed by a single entry within the Characteristic Supervisor.
Determine 5 presents a single-body sheet metallic half on this instance. The Tab and Slot instrument is getting used to mechanically find an edge. Notice the comfort of offsetting the tabs and making these offsets equal.
Each Determine 5 and Determine 1 present an impractical variety of tabs and slots. Determine 5 would require extremely exact bending of the half; it might be extra sensible to have extra air hole between tab and slot, maybe with fewer situations. These can be straightforward adjustments to make with the Tab and Slot instrument.
The gusset in Determine 1 can be unattainable to put in with out warping and maybe damaging the bracket. Thankfully, the Tab and Slot instrument permits situations to be skipped (much like the best way situations may be skipped in any sample). To make the gusset design extra sensible, it might make sense to skip situations close to the bend, make the tabs extra shallow, or improve the hole between tab and slot.
