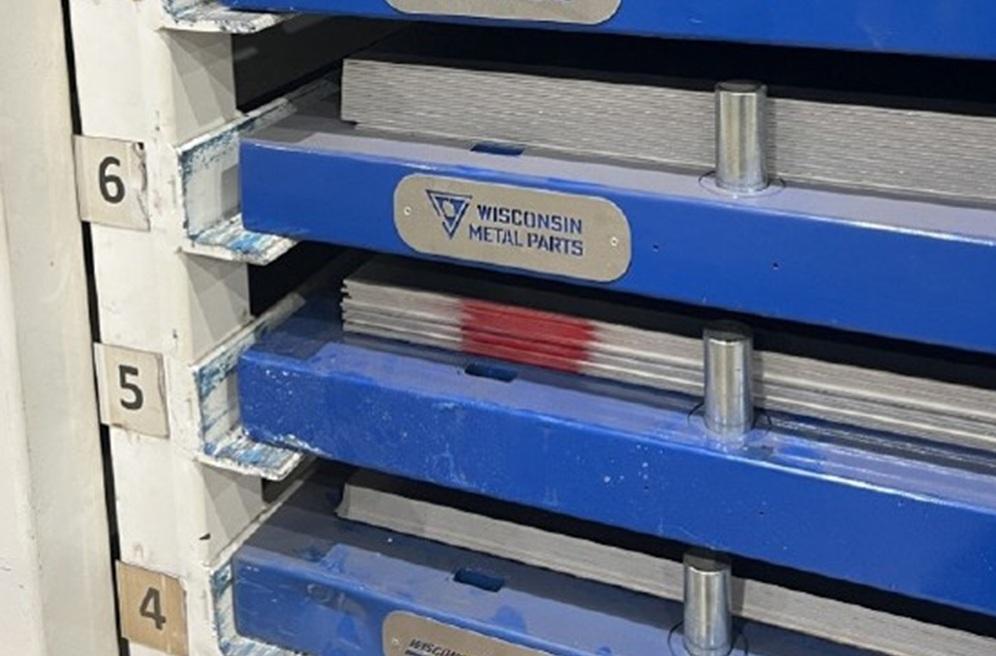

Wisconsin Metallic Components began making the cartridge system now offered by Lean Manufacturing Merchandise as a option to create a high-density materials storage system that might get rid of picket pallets whereas bettering security and materials move. Lincoln Brunner
As Zachary Bingham and his crew regarded throughout their sprawling warehouse three and a half years in the past, they knew they have been portray, because it have been, from the mistaken palette.
Truly, make that pallet.
A part of Bingham’s job as supplies supervisor for Daimler Truck North America Components and Logistics in Gastonia, N.C., is to make sure that materials—on this case, sheet steel—strikes effectively by means of the warehouse. The division makes thousands and thousands of components per 12 months for Freightliner and Western Star vehicles, Thomas Constructed buses, and Freightliner customized chassis on about 10 laser slicing stations served by a number of materials dealing with towers.
The difficulty at hand: Wood pallets littered the warehouse, representing each a possible security hazard and an environmentally unfriendly storage choice, as many pallets routinely splintered and needed to be scrapped. Sadly, that was the M.O.: The ability used innumerable picket pallets and a large assortment of cantilever racks to carry hundreds of sheets of metal and aluminum that vary from 1/16 to 1 in. thick.
Not solely have been the pallets a security hazard, however always transferring materials from pallets to the racks with side-loading lifts meant an extra step, repeated heaven is aware of what number of occasions per day, day by day.
So, when Bingham came upon about Lean Manufacturing Merchandise’ returnable cartridge system for storing sheet steel in uniformly spaced racks, he was duly intrigued. The cassettes have a 5,000-lb. capability and may be personalized to carry materials from 48 by 96 in. to 72 by 144 in. or different customized sizes.
DTNA makes use of 4- by 10-ft. and 5- by 10-ft. cartridges for its sheets—690 in all, staged on 37 completely different racks situated all through the ability. The salient distinction between then and now’s that as an alternative of delivering materials to DTNA on picket pallets, the numerous metal service facilities supplying the ability ship the sheets already loaded into the cartridges, which DTNA cycles endlessly by means of its array of slicing machines.
Due to the house between the metal cartridge on the racks and the wider-than-normal 3- by 10-in. fork holes within the cassettes, materials handlers can transfer the cassettes out and in of racks with ease. As well as, the burden of the fabric is borne by the racks, not the fabric itself, as it might be on picket pallets.
Lean Manufacturing put in the primary racks at DTNA in June 2023. “We went with the Lean cassette-style system to extend the quantity of fabric we will retailer per sq. foot and reduce our carbon footprint by eliminating picket skids, on high of questions of safety,” Bingham mentioned. “We did this through the use of Lean’s returnable cartridges. We despatched these to and from our steel suppliers rather than picket pallets. This additionally helped us part out growing older lifts and create a safer and extra commonplace method of transferring materials with a forklift.
“We ship them empty cartridges in return to maintain a constant cycle, like a milk run. This eliminates pallets and helps with high quality. It additionally saves us the step of needing to switch the sheet steel onto Lean cartridges.”
Lean Manufacturing Merchandise was launched about eight years in the past by Wisconsin Metallic Components, a contract producer in Waukesha, Wis., as a option to higher arrange the uncooked supplies in its store. Wisconsin Metallic Components constructed some racks for itself, one in all its giant OEM prospects noticed them in motion, and the orders to customise extra methods began rolling in.
“They have been searching for a high-density storage system,” Lean Manufacturing Merchandise Director of Gross sales Steve Drida mentioned. “There have been one or two [systems] in the marketplace at that time, they usually explored these and requested if they might do issues in another way or add various things and get extra out of it.
“It’s not the most affordable resolution. You will get pallet racking for a number of thousand bucks per footprint, nevertheless it’s completely completely different as compared. So, from exploring that, that’s how we went down this rabbit gap and spun off into Lean.”
Again on the DTNA components facility, as soon as cartridges are unloaded on the plant, they’re stacked up, each with a novel container ID to match towards the decide tickets that workers use to shortly find supplies earlier than they drive them to the suitable materials dealing with tower or one other holding spot earlier than fabrication. Materials then goes to a depalletizer, which removes the steel from the cartridge and takes it on to the laser to get loaded.
The cartridges have their very own polished metal positioning pins—roughly 2 by 6 in.—which can be inserted into holes on the perimeter of the body. The pins safe the fabric inside the cartridge till unloading and likewise stop materials from being broken when materials handlers sometimes bump cassettes into every one other or into the storage rack on which they’re positioned.
These pins are additionally what permit the cartridge to have the direct stacking perform whereas avoiding any accumulative weight on the sheet steel itself.
“This course of is just not solely quicker, it’s safer—and it’s capable of be finished with one worker versus two, which saves on oblique value,” Bingham mentioned.
And, with materials costs ever prone to the most recent tariffs and commerce disputes, making certain materials high quality each method attainable has turn out to be all of the extra necessary the previous few years, particularly for a facility that churns by means of the amount that DTNA does on the plant. The returnable cartridges maintain sheets stacked and guarded like a deck of playing cards in a field throughout cargo to allow them to’t slide off the highest of a bundle or get broken by an excessive amount of materials loaded on high of them on a pallet.
“It just about eliminates the chance for … materials to be outsized or be wavy,” Drida mentioned. “If it’s misaligned on a truck and it’s skinny gauge in order that vibration and weight from the truck make it wavy, you may not hit tolerance in your press brake in case you don’t catch it together with your bare eye.”
The change at DTNA Components and Logistics has been nothing in need of outstanding. Over the previous three years, there’s been a “lower in service time—time materials is ordered to time being delivered—and our accidents stemming round transferring materials on picket skids have dropped to zero since we’ve switched to steel cassettes,” Bingham mentioned. “Oblique labor prices [have] decreased because of the time financial savings. Additionally, morale is up, and this took little to no effort to get flooring buy-in. All shifts have cherished it because it was put in.”
