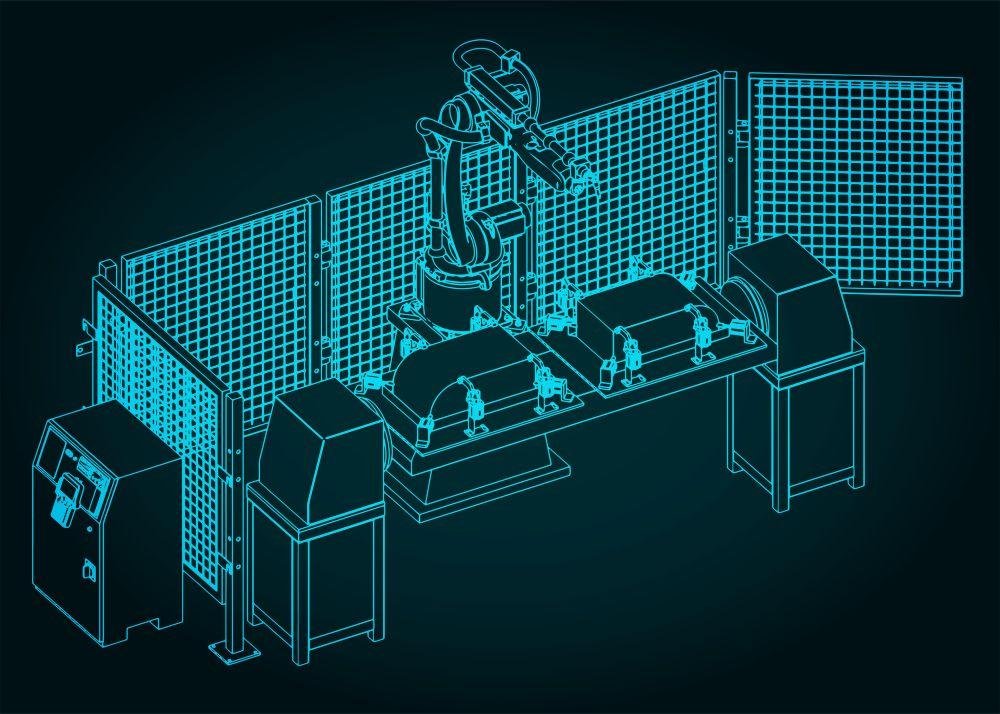

Steel fabricators can design, optimize, and validate robotic welding cells in a simulated surroundings, saving time, prices, and complications. blacklight_trace / iStock / Getty Pictures Plus
Manufacturing has modified over the previous a number of years. The true risk is not large corporations that eat up small corporations. It’s the quick corporations that eat the gradual corporations.
If producers aren’t adopting know-how and making the most of digital instruments, they’re turning into irrelevant. The worst half is that by the point these corporations work out they should play catch up, it is perhaps too late.
With the stakes as excessive as they’re, automation investments must work. Organizations can’t afford to have a robotic welding cell offline as a result of the implementation group continues to be understanding the kinks. Every day that passes with out the robots welding elements represents a lack of productiveness and potential income.
Automation is bought on its skill to ship productiveness and high quality enhancements. That may solely occur if a plan for automation works because it was supposed.
That is the place simulation software program may help. A steel fabricator can design, optimize, and validate processes within the welding division and decide the right structure of the robotic cell on a versatile platform. Steel fabricators get the peace of thoughts that the welding automation will work earlier than the cells are ever positioned into motion—eliminating the ache of unintended downtime.
How Simulation Makes a Distinction
Organising a robotic welding cell requires deliberate planning. A supervisor or store proprietor who walks onto the store flooring, factors to a repeatedly occurring welding job, and says, “Let’s automate that as a result of it seems like a very good candidate for robotic welding” isn’t doing the welding division any favors. That firm chief wants an understanding of the half, the welding course of, and the up- and downstream processes. Do not forget that unintended penalties sometimes create the issues.
Simulation helps to take away the danger from these high-stakes tasks. By getting into into the software program the robots used within the welding cell, cell structure, and CAD knowledge with weld paths, a steel fabricator can simulate operation, conduct digital commissioning, and even generate robot-specific code for fast deployment.
This kind of visualization meets the wants for the whole group engaged on the automation challenge. Engineers get to optimize manufacturing throughput and guarantee manufacturing movement to downstream actions is easy. Automation specialists see whether or not the robots can attain into the outlined areas and in the event that they keep away from collisions. Administration and monetary decision-makers get correct 3D animation that reveals the proposed cell goes to work.
Simulation additionally assists with cost-effective welding cell design. It’s usually used to find out the optimum dimension and placement of the robotic for the duties it’s to carry out. For example, a steel fabricator may be capable to place a welding robotic on a pedestal or an overhead gantry, making a state of affairs the place a smaller and cheaper robotic can be utilized as a substitute of a full-sized industrial robotic.
Robotic cells can get very sophisticated, particularly if a couple of robotic is used. There could also be a number of robots with overlapping work envelopes or positioners for shifting workpieces into the suitable orientation for the robots. Simulation can be utilized to check out these complicated cells and get rid of the danger of collisions.
The power to design, optimize, and validate a robotic welding cell shortens the implementation cycle and eliminates delays that is perhaps related to unexpected components that historically might have been recognized solely by bodily system tryout.
Getting Began
Step one in proving out a welding automation plan is knowing what’s to be welded and the way it’s to be welded. Earlier than simulation can be utilized to design, optimize, and validate a robotic welding setup, actual world knowledge assortment must happen.
The automation group ought to look to create half households that share commonalities. These half households then could possibly be matched to robotic welding cells that received’t require a whole lot of changeover, as related welding processes and consumables shall be used on similar-sized elements of the identical materials.
This elements census contains bodily dimensions, joint varieties (mapping out the share of fillet, butt, lap, and groove welds within the portfolio), materials combine, materials thickness, and entry constraints. The latter is the place digital tryout of automation actually stands out, as tight angles or deep pockets that require particular torch geometries usually may be neglected in planning.
From there, the automation group wants to try upstream processes and the way the elements are delivered to the welding cells. Are the blanking processes and press brakes in a position to ship constant dimensions, or does the automated welding gear have to deal with inconsistent gaps and questionable edge high quality?
Extra particularly, the group ought to doc dimensional consistency of elements arriving from the chopping and forming departments and measure the hole sizes to see if they’re constant or if some type of laser touch-sensing or through-arc seam monitoring is perhaps required as a part of the automation setup. In addition they ought to report consistency of edge cleanliness, searching for the presence of mill scale, rust, or oils, which might affect weld high quality.
Some of the essential duties throughout this data gathering stage is the gathering of efficiency metrics. With out this, a steel fabricating firm can’t decide the right robotic speeds wanted to ship a suitable return on funding.
A stopwatch turns out to be useful for measuring cycle occasions for welding jobs. The cycle time ought to cowl weld prep, tacking, precise arc-on time, and postweld cleansing.
Arc-on time share and defect charges play necessary roles in serving to to find out ROI. Arc-on time share gives a transparent image of simply how a lot time is spent welding quite than dealing with elements, as an illustration. Defect charges reveals the automation group what high quality points may exist and the function that automation may play in attempting to right them.
Lastly, welding fixtures must be reviewed. How lengthy does it take to arrange a fixture for a selected half? Which clamping technique—guide toggle clamps, pneumatic clamping, or one thing extra heavy-duty—works greatest?
Time for the Simulation
With the preliminary work accomplished, the knowledge may be shared with the simulation software program platform. That is starting of the validation course of, earlier than any gear is put in on the store flooring.
The simulated weld cell can replicate the entire gear and its motions in an precise automated weld cell.
Industrial robotic producers provide offline robotic simulation software program merchandise for movement path planning. They mannequin arm motion faithfully, however there’s much more in a robotic welding cell. All of these components should be current within the digital surroundings for the method to be simulated precisely.
For objects like machines, materials dealing with gadgets, and robotic arm finish effectors, 3D CAD fashions are normally out there. These may be imported into the simulation product to evaluate attain and examine for collisions with static objects.
As soon as all of that has been uploaded into the simulation software program, the steel fabricator can begin to choose remaining components used within the welding automation, corresponding to management software program and PLCs. The software program can replicate the indicators and inputs of these chosen objects.
The simulation is near being able to go. The addition of precise 3D CAD of workpieces destined for the robotic welding cell is the ultimate piece for the simulation to do its job.
Within the digital surroundings, the welding cell and its many elements run as in the event that they have been actually in manufacturing mode on an precise store flooring. The simulation software program doesn’t know any higher.
That is the purpose the place simulation proves its value, permitting a consumer to examine the next:
- Robotic dimension – By utilizing a robotic simulator, a fabricator can consider the choice set up and mounting positions and the affect of various sizes of robots. Smaller robots typically have greater acceleration and deceleration, are extra correct, and are cheaper than bigger robots.
- Motion errors – It’s higher to seek out out if an supposed arm motion is feasible within the digital realm than after equipment and fencing have been bolted to the ground.
- Security – For operations wherein welding cobots function alongside human employees, a simulation can consider hazards earlier than the cell is constructed. It could present how successfully security gear will shield employees from being hit by a robotic, workpiece, or positioner.
Offline Programming
Offline programming may be accomplished in parallel with cell development and validation. Weeks of on-the-floor programming may be averted, saving time spent getting the cell up and working.
The choice is an all too acquainted sight: a weld cell operator utilizing a robotic pendant controller to information the robotic from level to level and observing the tip effector positioning to forestall attainable collisions. It’s a tedious and time-consuming exercise, notably in a high-mix, low-volume manufacturing surroundings.
Simulation lets the automation group optimize robotic motion and welding exercise. When the precise cell is put in and the robotic is prepared for activation, this system may be copied to the robotic controller. The automation group has successfully eliminated an extended and irritating step from the implementation cycle.
Simply the Starting
With a digital twin—a extremely detailed digital mannequin of the welding automation cell—a steel fabricator can get to welding high quality elements far more shortly than if it have been counting on conventional tryout steps after set up. However that’s not all that simulation is sweet for.
An automation group can create welding applications concurrently throughout welding cell validation. When the cell is definitely put in, manufacturing can start immediately as a result of applications have been created and confirmed out in a simulated surroundings.
Simulation additionally can be utilized to check out new elements within the cell, making certain the whole lot works because it ought to and concurrently creating the offline program for that job. It’s an surroundings that encourages steady enchancment as a result of the automation group doesn’t must interrupt manufacturing welding. It could experiment with new processes or consumables and generate quantifiable outcomes with out impeding store flooring actions.
As proficient as steel fabricators are, they’ll’t add extra time to the day or week. They will, nonetheless, take the required steps to take away waste from welding automation tasks, and simulation instruments are a good way to try this.
