Plasma chopping velocity is just one piece of the productiveness puzzle. One other piece, usually neglected, is the pierce.
Excessive-definition plasma chopping stays a plate fabrication workhorse, particularly in thick materials. On this world, cutting-inches per minute can have an actual impression on total throughput. Even so, optimizing the precise chopping is barely a chunk of the puzzle. One other main piece is the pierce.
“If you pierce a plate, the molten materials has to go someplace, and normally it rises like a volcano. If the setup and consumables aren’t designed correctly, you’re going to degrade consumable life.”
That was Jorge Santana, senior product supervisor at Hypertherm Associates. The Fabricator spoke with Santana for the opposite half of the image, the pierce—tips on how to dial it in and what it means for total plasma chopping throughput.
“Many fabricators actually focus on the chopping journey velocity,” he mentioned. “They ask, ‘How briskly can I reduce this half?’ However in measuring this, many individuals overlook the pierce. Each pierce takes time.”
Fundamentals of the Plasma Pierce
Plasma chopping energy provides use open-circuit voltage (OCV), with the distinction in electrical potential between the electrode (with a detrimental cost) and the nozzle and workpiece (optimistic cost). The OCV creates that top preliminary potential to ionize the gasoline and strike the pilot arc contained in the torch physique, earlier than the arc transfers to the workpiece. As soon as the arc has transferred to grounded steel, the pilot circuit is shut off and the system commences chopping.
“Ideally, energy sources have a variety of voltage to allow them to maintain the arc as far-off from the plate as attainable,” Santana mentioned. “The farther you might be, the much less molten steel splashes up towards the consumables. For this reason optimizing your pierce actually issues.”
Fashionable energy sources can switch the plasma arc from the pierce peak, which has helped streamline stationary piercing. Historically, the torch would descend to the switch peak, the place it might provoke the arc after which instantly retract to a specified pierce peak. As we speak, with voltage able to transferring the arc from a better level, the torch merely descends to detect the fabric, then retracts to the pierce peak to provoke the arc switch. As soon as the piercing time (usually referred to as pierce delay) is full, the torch descends to the usual reduce peak (see Figures 1 and 2).
“To develop piercing protocols, we check for not less than 300 pierces occurring repeatedly, penetrating by the utmost materials thickness [rated for the power source],” Santana mentioned, including that each 100 cuts, technicians have a look at the kerf angularity and the situation of the torch consumables.
Minimizing the Pierce
Some operators may depend on chain chopping, a method that retains the plasma arc in chopping mode for many of a nest. As soon as the torch finishes one half profile, it slices by the skeleton net part and begins on the following half.
“This method helps you cut back the variety of pierces you could do on a nest,” Santana defined, including that the technique has its challenges. “To be trustworthy, I haven’t seen chain chopping used fairly often for plasma chopping.”

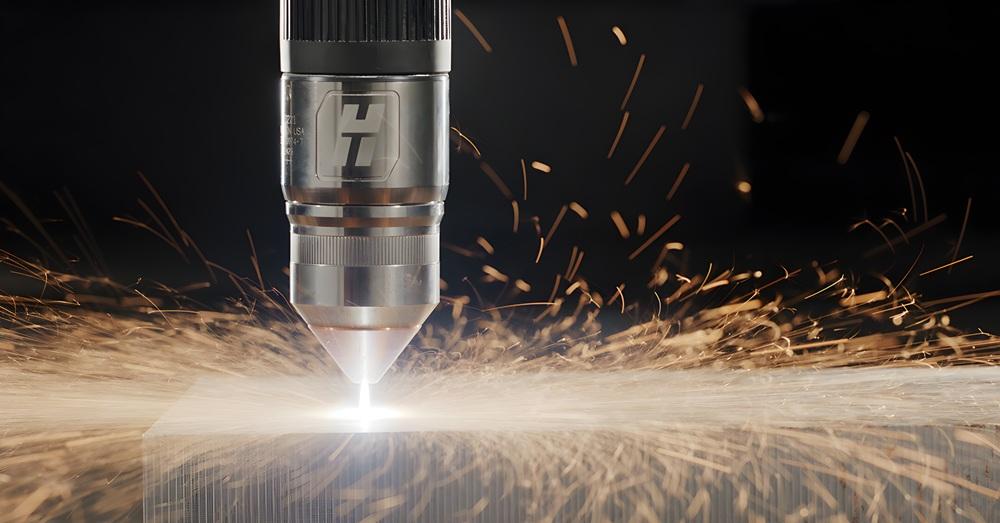

FIGURE 1. Performing a stationary pierce, fashionable plasma energy sources have the voltage essential to switch the arc from the pierce peak.
There are a number of causes for this. Chain chopping doesn’t account for holes, slots, or different inside options. And even when a nest has elements with no inside options, chain chopping limits this system’s toolpath choices. “And actually, so many elements have inside options. It’s extraordinarily frequent. You will have to pierce in some unspecified time in the future.” He added that as an alternative of specializing in methods to keep away from piercing, these utilizing and growing plasma chopping know-how have targeted on perfecting the pierce itself.
Edge Begin, Prepierce, and Double Pierce
Initiating the plasma arc on the plate edge has loads of benefits. The plasma arc can reduce thicker supplies, and since you’re not piercing a gap and forcing molten steel upward towards the torch, consumables last more. To carry out an edge begin, the torch is positioned close to the fabric edge. As quickly because the arc transfers, it “pulls” towards the plate edge ({the electrical} floor). As soon as established, the chopping mode can start.
Whereas frequent in handbook plasma chopping, performing an edge begin on a plasma chopping desk can current some challenges. The plate edge isn’t a set level however as an alternative varies barely from plate to plate.
“As a result of the plate isn’t at a set level each single time, you want an operator with sufficient expertise, or you could spend money on particular peripheral tools, to make sure you discover the sting and begin in the identical place each time. When you consider the setup time it requires, edge beginning can actually hinder your productiveness. And for many jobs, you might have a number of elements on a nest that can require an inside pierce anyway.”
Because of this, edge beginning normally works finest when an operator pushes the thickness limits for a specific plasma chopping energy supply and torch consumables. It additionally works along side prepiercing. Generally referred to as a predrilled begin, it’s primarily an edge begin in a predrilled gap. The operator drills (utilizing, say, a magazine drill, or a drilling station on a multifunction machine) pilot holes all through the nest. The plasma torch then performs a collection of edge begins (on the plate edge) and prepierces within the drilled holes.
Once more, the operator wants to find out the exact torch place and make sure the arc fires straight adjoining to that drilled gap edge. The physics of the plasma plume, together with its tendency to “hug” the fabric edge when the torch is positioned in simply the suitable method, takes time to study (see Determine 3). Such piercing methods aren’t for the uninitiated.
When edge beginning isn’t sensible, some operators may depend on the double pierce, particularly when excessive plate thickness leaves no different choice (see Determine 4). As its title implies, the method includes piercing as soon as partway by, eradicating slag, and piercing once more to penetrate by fully. Like edge beginning, this system additionally requires finesse. For example, an operator may transfer the torch to the sting of the partially pierced gap earlier than initiating the second pierce, simply to assist direct molten steel away from the torch consumables.
Transferring Pierce
In a transferring pierce, the torch begins to maneuver quickly after the arc is transferred (see Determine 5). “As a result of the torch is transferring, the molten steel splashes up in a path behind the torch,” Santana mentioned. “On the identical time, the fabric thickness [below the plasma arc] decreases till you ultimately penetrate by your complete plate. Many have discovered success with this technique, but it surely does require some method and operator finesse.”
Operators must dial within the journey velocity, and so they additionally must plan for barely longer lead-ins. In some nest layouts, this may require barely bigger net sections, which might lower materials yield. The space the pierce travels is essential right here. The very last thing they need is for the torch to transition from piercing to chopping mode too quickly. This, Santana mentioned, is the place that finesse comes into play.
The method has comparable drawbacks as edge beginning, prepiercing, and double piercing. A standard transferring pierce can save consumables, however it will possibly add considerably to setup time and, therefore, lower total throughput. It additionally requires specialised abilities and finesse that take time to study and excellent.
Pierce With Argon Shielding
Even so, the transferring pierce does have severe advantages, particularly on the subject of consumable life. As we speak, some operations may select a managed transferring pierce when tackling materials that pushes a system’s thickness limits—and it’s a very good different to edge begins that, once more, can change relying on a plate’s dimensional tolerances and the fabric’s actual place on the desk.
FIGURE 2. A plasma torch initiates a pierce in thick aluminum plate. Notice the numerous pierce peak, defending the consumables from molten materials.
And as Santana defined, that is the place applied sciences that assist management the pierce come into play. That is the place argon-assisted piercing steps into the image.
This Hypertherm know-how primarily makes use of argon as a sort of shielding gasoline. “It permits us to switch the arc at a better distance,” Santana mentioned. “By doing that, we’re stopping the fabric from splashing up and damaging the consumables. You’re preserving the consumable life, and also you additionally don’t have to make use of specialised strategies just like the transferring pierce or prepierce.”
On a 460-amp system (XPR mannequin), the torch can carry out a stationary pierce in 2.5-in.-thick gentle metal at a pierce peak of 1.25 in. off the floor of the fabric, whereas the pierce delay is 4.5 seconds, after which the torch descends to a 0.5-in. reduce peak. The pierce peak for 2-in. materials is 0.850 in., and the pierce delay is 2 seconds, after which the torch descends to 0.4 in. above the fabric.
Materials 2.75 in. and thicker normally requires edge begins, even with argon shielding. In truth, edge begins stay the popular technique for excessive materials thicknesses. Though stationary piercing isn’t beneficial in these supplies, argon does play a job when chopping commences. As Santana defined, argon-assisted chopping successfully will increase plasma chopping’s thickness capability—as much as 4 in. for carbon metal and 5 in. for stainless (utilizing the 460-amp XPR energy supply).
“The argon, an inert gasoline, primarily helps us maintain the arc over an extended distance, which permits us to chop thicker.”
Liquid-Cooled Shielding
Santana added that argon-assisted know-how successfully permits plasma operations to broaden the usage of the tried and true stationary pierce into thicker supplies. And once more, when delving into excessive thickness, argon helps create a managed transferring pierce.
In some circumstances, Santana may advocate one other instrument—used alone or along side the argon help—that may assist lengthen consumable life: liquid-cooled shielding. On this course of, which Hypertherm calls PowerPierce, water cools the nozzle and prevents molten steel from sticking, repelling spatter. In sure methods, the know-how can improve the transferring pierce, avoiding the necessity for edge begins.
About Repeatability
Santana clarified that there’s nothing incorrect with edge begins. They continue to be the easiest way to start out a reduce in extraordinarily thick plate. However they do add one other variable—plate place—into the equation.
Zoom out and have a look at the product stream at many heavy fab retailers, and also you possible received’t see a constraint in plasma chopping. Even in some cut-only operations, although, chopping sooner isn’t a sustainable enchancment if the operation doesn’t repeatedly produce high quality elements in a predictable timeframe. If machines are down and rework abounds (like extreme edge grinding and re-cuts) attributable to untimely consumable put on, the inconsistent throughput that outcomes can throw a severe wrench into manufacturing planning.
Like all steel fabrication know-how, plasma chopping is about managing the tradeoffs to provide the best throughput of elements that meet or exceed high quality necessities. To do that, nobody variable may be seen in isolation. The overall cycle time contains some mixture of chopping and piercing (and for thick materials, edge beginning). Overlook the piercing and also you miss an essential a part of the overall processing time. It’s additionally why a streamlined, managed pierce could make a world of distinction.
