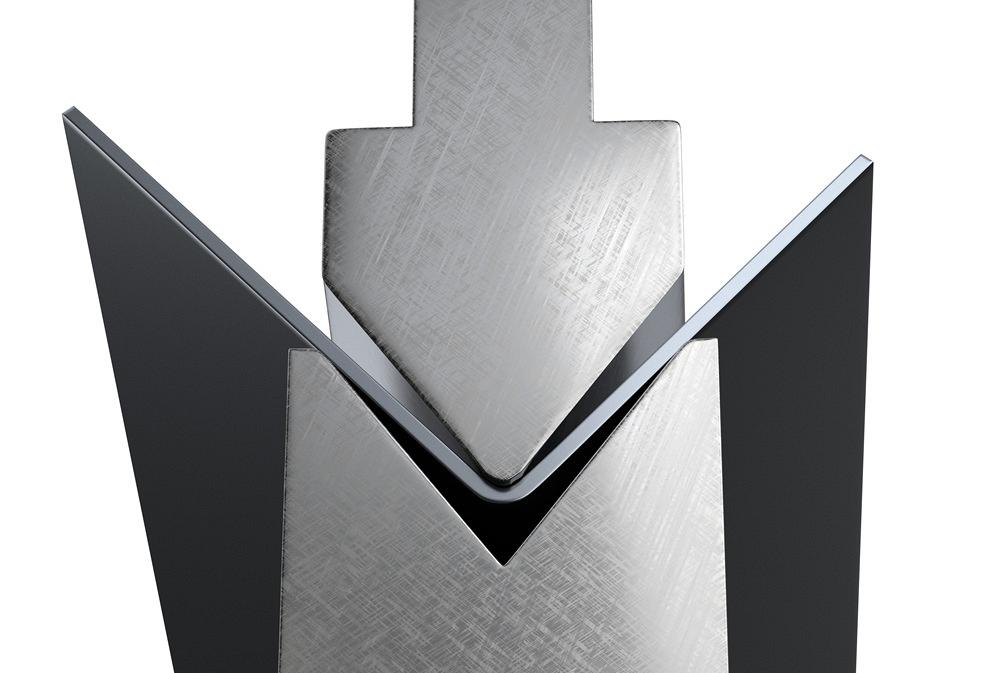

FIGURE 2. When forming utilizing a standard V die, the half is dragged over the 2 mounted shoulders, leading to important friction and better tonnage necessities to bend the metallic. tdhster/iStock/Getty Pictures Plus
As described in final month’s column, press brake rotary (or winged) dies function very in a different way from normal V dies. Understanding these variations helps clarify how they behave in a different way from typical press brake tooling.
Because the rotary die bends, three elements work together: the radius heart (RC), or the geometric heart of the within bend radius (see Determine 1); heart of rotation (CoR), or the pivot axis of every rotor inside a winged die; and the digital V opening (VVO), the programmed die-opening equal outlined by the gap between the 2 rotor facilities.
Why can rotary dies kind flanges that typical V dies can’t? The reply lies in how the sheet metallic is supported through the bending course of.
Minimal Flange Limits in Standard V-Dies
In a typical air bending setup, the sheet metallic rests on two die shoulders separated by a hard and fast V opening. Because the punch descends, the sheet is pressured downward between these shoulders, and the bend begins to kind. Earlier than the bend can happen, nonetheless, the sheet should bridge the opening between the die shoulders. If the flange is simply too quick to span that opening, the sheet merely falls into the die fairly than forming a bend.
This geometry requires a minimal flange size. A generally used store rule is: Minimal flange = V opening/2. The required flange size could also be barely bigger relying on the within bend radius and materials thickness. Regardless, the elemental limitation stays the identical: The sheet should have the ability to span the die opening earlier than bending can start. This restriction typically forces engineers to revamp components when bends are situated close to edges, holes, or slim tabs.
Help Geometry in Rotary Dies
Rotary dies eradicate that limitation as a result of they function utilizing a totally completely different assist geometry. Not like a standard die, rotary dies don’t require materials to span a large hole earlier than the forming stroke begins.
As an alternative of resting on two mounted die shoulders, the sheet metallic sits on two rotating rotor surfaces. When the die is in its house place, the rotor flats face upward and the sheet rests immediately on these flats. When the punch nostril touches the fabric, the sheet is totally supported, but bending hasn’t commenced fairly but. This easy distinction dramatically modifications the flange limitation (see Figures 2 and 3).
The Position of the Middle of Rotation
Every rotor pivots in regards to the CoR. When the punch begins the forming stroke, the punch pushes downward on the sheet metallic, and the rotors start to rotate outward round their facilities. Throughout this movement, the sheet stays supported by the rotor surfaces.
As an alternative of sliding throughout stationary shoulders, the sheet is successfully carried by the rotating surfaces because the bend kinds. As a result of the sheet stays supported all through the forming course of, it may be situated a lot nearer to the rotor’s pivot level than with typical tooling. That is the elemental cause rotary dies permit extraordinarily quick flanges.
Steady Contact Throughout Forming
When utilizing a rotary die, you obtain steady contact between the sheet metallic and the tooling. Throughout the forming stroke, the sheet stays involved with the punch nostril and the rotor surfaces. Because the punch strikes downward, the rotors rotate outward, and the sheet wraps across the punch radius. At no level does the sheet lose assist.

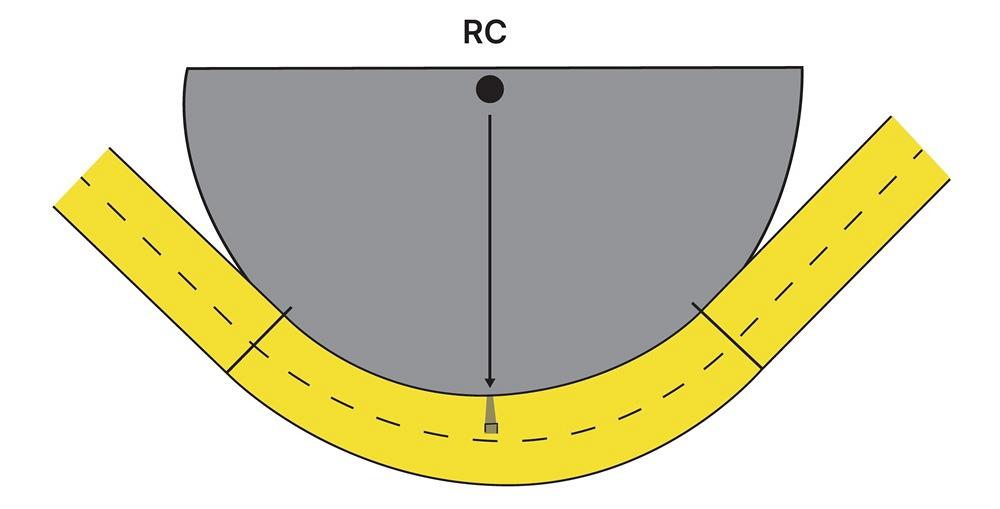

FIGURE 1. To search out the radius heart (RC), draw (or think about) a circle with a portion of the circumference matching the arc of the bend. The middle of that circle is the RC.
This steady contact eliminates the sliding movement that happens in typical air bending. When a sheet slides throughout the die shoulders in a standard setup, friction will increase, and the fabric might momentarily lose secure assist. This instability turns into particularly problematic when trying to kind quick flanges. Rotary dies substitute the sliding movement with rolling contact, significantly bettering stability throughout bending.
The Significance of Help
As a result of the sheet begins totally supported on the rotor flats, the forming course of begins from a secure situation. Because the punch descends, the rotors rotate, carrying the fabric with them. The sheet doesn’t have to “discover” assist through the bend. It already has it. This distinction could seem refined, but it surely has a direct influence on what is feasible in manufacturing.
Brief flanges should not nearly clearance. They’re a matter of stability. When the fabric stays supported all through the forming cycle, the bend may be initiated and managed a lot nearer to the sting of the half.
That is why rotary dies can typically kind options that will in any other case require redesign in typical tooling. The geometry doesn’t violate any bending guidelines. It merely modifications the best way the fabric is supported whereas these guidelines are utilized.
Minimal Flange Functionality
As a result of the sheet rests immediately on the rotor flats earlier than bending begins, the efficient assist level is situated a lot nearer to the bend line. Because of this, rotary dies can kind flanges far shorter than these attainable with typical V dies. You possibly can seek the advice of your tooling provider for information that applies to the rotary dies you’re utilizing.
Typical comparisons look one thing like the information described in Determine 4. Once more, these values differ relying on the particular rotor geometry and tooling design, however the development is obvious: Rotary dies can typically kind flanges which might be two to 3 occasions shorter than flanges fashioned with typical dies.
Brief-flange functionality turns into significantly beneficial in a number of widespread fabrication conditions. When a bend happens near a gap or slot, the encircling materials can distort throughout forming. As a result of rotary dies assist the sheet all through the bending course of, gap deformation is commonly lowered.
Yow will discover related advantages when forming slim structural tabs. Mounting tabs and small brackets incessantly require bends near the sting of the half. Utilizing typical dies might require redesigning the half to extend flange size. Rotary dies can typically kind these options with out modification.
Cosmetics, Friction Discount, and Tonnage
Many industries require bending polished chrome steel or prefinished aluminum panels. The rolling contact produced by rotary dies reduces sliding friction and helps stop floor marking.
The rolling contact additionally reduces the forming power. In typical air bending, a portion of the press brake’s tonnage is consumed by friction because the sheet slides throughout the die shoulders. When sliding friction is changed by rolling contact, this resistance decreases.

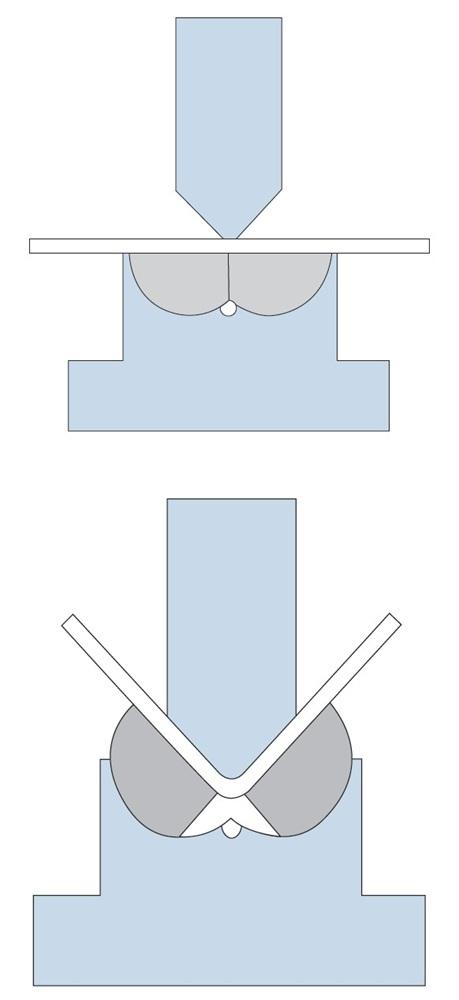

FIGURE 3. Once you use rotary dies, you obtain steady contact between the tooling and materials. The bend cycle begins within the house place (left), and the rotors rotate because the punch descends.
Many outlets report tonnage reductions within the vary of 15% to 25%, relying on materials properties and tooling geometry. Decrease forming forces can lengthen device life and cut back put on on the press brake.
Programming Issues
Regardless that rotary dies function in a different way throughout forming, press brake controllers nonetheless require a die opening worth when calculating bend depth and tonnage. That is the place the VVO turns into vital. The VVO is the gap between the 2 CoRs when the die is in its house place.
The controller treats the VVO precisely as if it had been the opening of a standard V die. Though the rotors transfer throughout forming, the programmed VVO stays fixed.
About Tonnage
Within the subsequent column, we’ll look at one other vital facet of rotary die bending: learn how to calculate forming tonnage and account for materials variables. Understanding how materials thickness, energy, and friction affect bending power will enable you to decide press brake capability necessities when utilizing rotary dies.

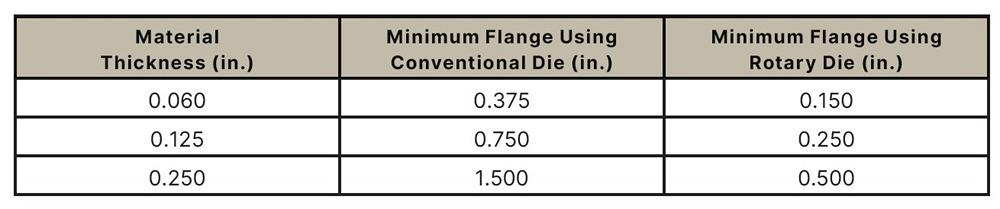

FIGURE 4. Rotary dies can kind shorter flanges. This reveals a typical comparability, although you’ll be able to seek the advice of your tooling provider for info particular to the rotary dies you’re utilizing.
