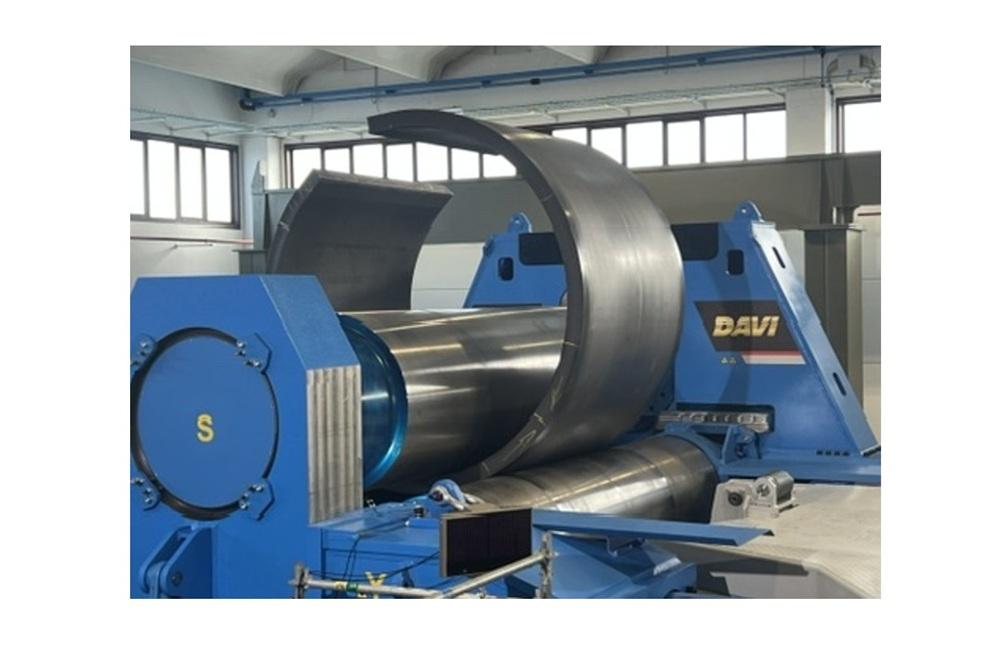

Rolling a 5-in.-thick plate of metal into an ideal cylinder on a three-roll requires the finesse of an skilled operator—a luxurious not each store has. Photographs: Lincoln Brunner
Watching a plate rolling machine forcibly therapeutic massage a large carbon metal plate right into a cylinder is a mesmerizing sight—a lot in order that the equally large variety of nuanced changes essential to do it nicely may get misplaced.
The Fabricator lately attended an indication of the newest plate rolling expertise at Davi Group’s headquarters in Cesena, Italy, the place the corporate displayed the capabilities of its three- and four-roll plate rolling machines. The biggest producer of hydraulic and all-electric plate rollers on the earth, Davi presents a variety of rolling machines for comparatively skinny materials all the best way as much as the thickest plate. Its machines predominantly course of thick plate utilized in pipelines and strain vessels frequent to the ability technology, petroleum, chemical, and protection sectors.
Regardless of the top use market, nevertheless, fabricators trying to serve these markets nonetheless should ask themselves which configuration—three or 4 rolls—makes probably the most sense for his or her operations.
That’s a lot simpler mentioned than achieved, however there are some basic pointers.
Three-roll machines afford a excessive diploma of variability of their geometry with the in-and-out movement of the 2 aspect rolls. However a sophisticated diploma of experience is required to handle that variability, particularly in relation to the size of the fabric’s flat spot (often 1.5 to 2.5 occasions the roll thickness).
4-roll machines provide a lot larger management than their three-roll counterparts by offering fixed strain between the highest and backside and two aspect rolls, which function with a set geometry relative to 1 one other. As well as, due to that fastened geometry, an operator is aware of exactly how a lot flat spot to count on in a given workpiece.
One simple technique to start the choice course of, in fact, is solely to think about your major prospects and purchase accordingly.
Excessive-Manufacturing Mode
A standard instance is the manufacturing of wind towers, an utility that usually requires the repeatability of a four-roll plate rolling machine due to the high-production necessities. To that finish, four-roll machines usually provide automated programming that three-roll machines often don’t.
“Most people that construct wind towers, so far as they want excessive manufacturing, they go along with a four-roll,” mentioned Matteo Rossi, Davi’s enterprise growth supervisor for the southeast U.S. “These days, the four-roll machines have the fourth roll proper beneath the highest roll, and the fourth retains the plate pinched at any given time throughout the rolling course of. It permits automation so you possibly can have a component made nearly mechanically—or a minimum of you’ll have repeatability.”
Repeatability isn’t often related to three-roll machines as a result of at no level is the workpiece ever pinched like a four-roll machine. In consequence, it’s vulnerable to slippage with a less-experienced operator on the helm.
Fabricators trying to course of thick plate should ask themselves which configuration—three or 4 rolls—makes probably the most sense for his or her operations.
A 3-roll unit principally operates like a large press brake, with the aspect (backside) rolls appearing like a V-die: The bigger the V-die, the heavier the plate you possibly can fabricate. Nonetheless, that flexibility calls for data of methods to set the rolls exactly for the scale of the fabric being rolled, particularly for conical items.
The minimal bend radius achievable by a given machine is a perform of the highest roll diameter, the thickness of the fabric being processed, and the size of the piece being rolled—the chief cause that outlets working three-roll machines usually buy models with interchangeable prime rolls.
The experience to deal with all these variables is in much less provide on a regular basis because the keepers of that data retire with nobody to take their place.
“It’s rather a lot simpler to make use of a four-roll than a three-roll,” Rossi mentioned. “I can in all probability use a four-roll, however I extremely doubt that I’d even have the center to begin rolling on a three- roll variable-geometry machine. With the variable geometry, you actually need to know what you’re doing. The plate shouldn’t be totally pinched—it’s extra like an operator feeling. So, it’s good to have slightly bit extra expertise for utilizing a three-roll.”
Dealing With Variable Calls for
Many corporations, Davi included, provide four-roll models that fabricate plate that’s as skinny as 9 mm—far more throughout the realm of small outlets than the large three-roll models bending, say, 6-in. plate with 7,000 tons of hydraulic pressure. That vary of fabric thicknesses—a typical cause that prospects go for machines with interchangeable prime rolls—lends itself nicely to the unpredictable calls for of a typical job store’s buyer base, in response to Rossi.
For instance, a typical machine purchased by U.S. fab outlets is a 10-ft.-wide unit rated for ½- or 5/8-in. materials. As soon as the machine is put in, prospects inevitably ask for elements which might be ¼ or 3/16 in., during which case, outlets usually will shim the rolls to compensate for the hole between what the machine is constructed for and what’s being put by means of it.
No matter buyer wants an organization is making an attempt to satisfy with its four-roll machine, simply having that configuration helps many corporations take care of the shortage of expert operators with something near the expertise essential to run a three-roll unit.
“A basic fab store in the US, they lean extra in the direction of a four-roll than a three-roll as a result of it’s simpler to make use of for an operator,” Rossi mentioned. “And likewise, with the truth that you have got the plate pinched between the highest and the underside roll at any given time throughout the rolling course of, it’s safer.”
Software program Eases the Ache
Along with introducing two new four-roll machines finally fall’s FABTECH present, Davi launched a software program improve for its three-roll models.
An illustration of one of many firm’s highly effective three-roll machines in Italy instructed the story of the everyday operator’s plight.
Despite the fact that consultants employed by the producer have been working the demo, it nonetheless took them a number of minutes to manufacture a plate of 130-mm-thick metal greater than 19.5 ft. lengthy right into a cylinder on one of many firm’s 4,000-ton three-roll machines.
The brand new software program, whereas not making the machine computerized like lots of its four-roll counterparts, a minimum of makes the rolling course of a bit much less scary for the uninitiated.
“The software program will support you, the operator, and inform you, ‘Hey, if you wish to obtain that diameter, you’ve bought to begin roughly from this place on the underside roll left aspect, that place on the underside roll proper aspect, and a large place for the highest roll,’” Rossi mentioned. “It takes slightly little bit of guesswork out of it, regardless that a three-roll continues to be a reasonably handbook machine. There’ll nonetheless be operator intervention, greater than a four-roll, however a minimum of it provides you some steerage.”
With all of the nuances concerned, corporations looking for simply the precise curler should, as a last measure, ask themselves what sorts of enterprise they could pursue sooner or later. Proper now, protection contractors—particularly for navy vessels—have develop into a sizzling marketplace for fabricators, as are energy technology sector prospects (together with new small nuclear energy stations) serving the huge extra vitality calls for of AI and the server farms that allow it.
As well as, with the present uptick in petroleum and petrochemical exercise, it’s a wide-open marketplace for anybody prepared and capable of provide it.
“There’s nonetheless a ton of outdated gear in fab outlets all through the US,” Rossi mentioned. “There’s nonetheless plenty of outdated gear that must be changed. I feel that individuals are trying slightly bit extra into bringing in fab gear proper now than outsourcing [work] as a result of if you outsource, you don’t have management of the method.”
