Uncover the World’s First Earthquake Detector, Invented in China 2,000 Years In the past

The Renais­sance didn’t, strict­ly converse­ing, happen in Chi­na. But it appears that evidently the Mid­dle King­dom did have its Renais­sance males, so to talk, and in a lot ear­li­er occasions at that. We discover one such illus­tri­ous fig­ure within the Han dynasty of the primary and sec­ond cen­turies: a states­man named Zhang Heng (78–139 AD), who man­aged to dis­tin­guish him­self throughout a spread of fields from math­e­mat­ics to astron­o­my to phi­los­o­phy to poet­ry. His accom­plish­ments in sci­ence and tech­nol­o­gy embrace invent­ing the primary hydraulic armil­lary sphere for observ­ing the heav­ens, improv­ing water clocks with a sec­ondary tank, cal­cu­lat­ing pi fur­ther than it had been in Chi­na to this point, and mak­ing dis­cov­er­ies concerning the nature of the moon. He additionally, so data present, put togeth­er the first-ever seis­mo­scope, a tool for detect­ing earth­quakes.

A visu­al expla­na­tion of Zhang’s design seems in the Sci­ence­World video above. His seis­mo­scope, its nar­ra­tor says, “was referred to as hòufēng dìdòngyí, which suggests ‘instru­ment for mea­sur­ing sea­son­al winds and transfer­ments of the earth,’ ” and it might “deter­mine tough­ly the direc­tion wherein an earth­quake occurred.”

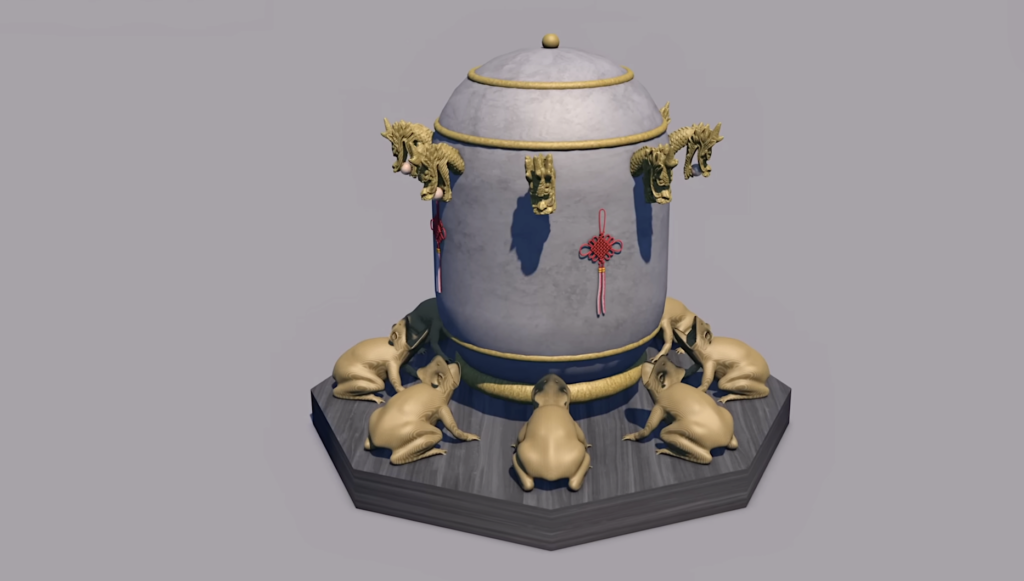

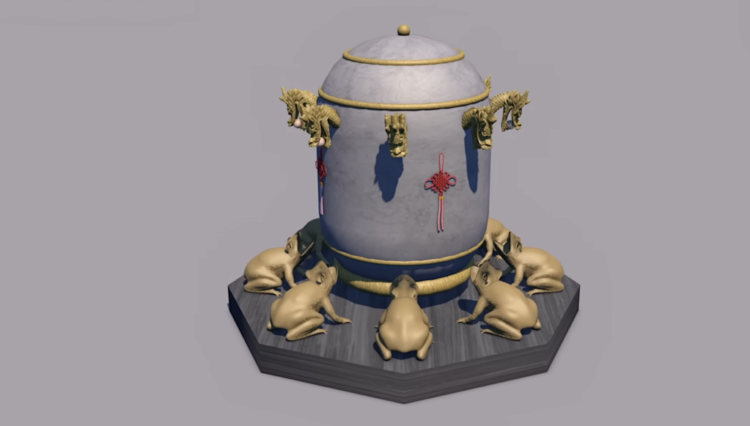

Every of its eight drag­on heads (a com­bi­na­tion of num­ber and crea­ture that, in Chi­na, might laborious­ly be extra aus­pi­cious) holds a ball; when the bottom shook, the drag­on level­ing towards the epi­cen­ter of the quake drops its ball into the mouth of one of many dec­o­ra­tive toads wait­ing beneath. At one time, as his­to­ry has report­ed, it “detect­ed an earth­quake 650 kilo­me­ters, or 400 miles away, that was­n’t felt on the loca­tion of the seis­mo­scope.”

Not unhealthy, con­sid­er­ing that nei­ther Zhang nor any­one else had but heard of tec­ton­ic plates. However as all engi­neers know, prac­ti­cal units usually work simply tremendous even within the absence of com­plete­ly sound the­o­ry. Although no con­tem­po­rary examination­ples of hòufēng dìdòngyí sur­vive from Zhang’s time, “researchers imagine that contained in the seis­mo­scope had been a pen­du­lum, a bronze ball below the pen­du­lum, eight chan­nels, and eight levers that acti­vat­ed the drag­ons’ mouths.” Mov­ing in response to a shock wave, the pen­du­lum would launch the ball within the oppo­website direc­tion, which might roll down a chan­nel and launch the mouth on the finish of it. How­ev­er inno­v­a­tive it was for its time, this scheme might, in fact, professional­vide no infor­ma­tion about actual­ly how distant the earth­quake hap­pened, to say noth­ing of pre­dic­tion. For­tu­nate­ly, cen­turies of Renais­sance males nonetheless lay forward to fig­ure all that out.
