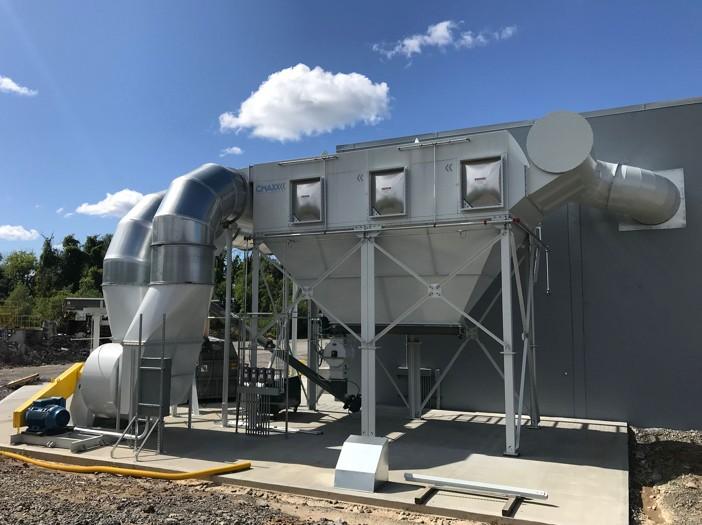

A mud assortment or fume extraction system is not noticeable till it stops doing the job it was designed to do. A correct upkeep schedule for these techniques may help a steel fabricator keep away from undesirable downtime by catching points earlier than they emerge as actual emergencies. Aerotek Tools Provide Inc.
In lots of fabrication outlets, mud assortment and fume extraction techniques do their job quietly—till they don’t.
As a result of they function within the background, they usually obtain much less consideration than machines instantly tied to manufacturing. However when airflow drops, filters load, belts slip, or a fan begins working out of alignment, the results present up shortly on the ground. Seize weakens on the supply. Mud seems the place it mustn’t. Smoke or haze lingers longer than normal. A system that was straightforward to disregard all of a sudden turns into a upkeep downside.
Most of those points don’t start as sudden failures. They construct over time. That’s the reason preventive upkeep issues. A constant inspection routine, mixed with fundamental evaluation of filter differential strain and fan situation, may help upkeep groups spot adjustments early and proper them earlier than they develop into downtime occasions.
Simple to Ignore
Mud collectors and fume extraction techniques are important, however they’re straightforward to take as a right. If the fan is working and the collector is on-line, the idea is usually that the system is ok. However that assumption might be costly.
In contrast to a machine failure that stops manufacturing instantly, assortment system issues normally seem as gradual lack of efficiency. Filters load over time. Bearings put on. Dampers stick. Duct joints leak. None of these points might shut down a line at first, however they’ll steadily scale back airflow, improve part put on, and make the system much less dependable.
A sensible upkeep program isn’t about ready for a serious fault. It’s about catching early indicators of change earlier than they develop into bigger restore and manufacturing issues.
Start With a Weekly Walkaround
A weekly inspection doesn’t should be sophisticated. Its objective is to catch seen and audible adjustments earlier than they flip into month-long blind spots.
A weekly inspection ought to embody:
- Visible inspection of the collector, fan, duct connections, and discharge areas
- Affirmation that airflow seems regular at main hoods or pick-up factors
- A examine of differential strain readings throughout the filters
- Listening for uncommon fan, belt, or bearing noise
- In search of mud accumulation round entry doorways, seals, hopper areas, and duct joints
- Inspecting belts for seen cracking, fraying, or glazing
- Confirming that assortment bins, discharge units, and rotary valves are working usually
- Verifying that gauges, alarms, and indicator lights are functioning correctly
Operator suggestions additionally issues. In lots of outlets, the primary signal of hassle is weaker seize at a hood that used to carry out usually or a grievance that haze is hanging within the air longer than it did the week earlier than.
Month-to-month Checks Affirm System Situation
A month-to-month evaluation ought to transcend whether or not the system remains to be working. The extra helpful query is whether or not it’s nonetheless working as meant.
Month-to-month checks ought to embody:
- Recording and evaluating differential strain readings to prior months
- Inspecting filters for loading, harm, or uneven put on
- Checking the fan wheel for buildup that would have an effect on steadiness
- Verifying belt rigidity and sheave alignment
- Inspecting bearings for warmth, noise, or lubrication points
- Checking entry doorways, clamps, and gaskets for air leaks
- Inspecting dampers, blast gates, and actuators without cost motion
- In search of bridging, blockage, or poor discharge in hopper areas
- Confirming that pulse-cleaning elements are functioning correctly, the place relevant
A system can seem practical whereas a sticking damper, minor leak, or partial blockage is already lowering efficiency. Month-to-month checks assist reveal these issues earlier than they develop into complaints on the ground or emergency upkeep calls.
Quarterly Inspections Give attention to Mechanical Reliability
Quarterly evaluations are the precise time to look extra carefully on the elements most definitely to create unplanned downtime if left unchecked. In fabrication environments, variable loading, excessive particulate ranges, warmth, and fixed system biking can all speed up put on.
Quarterly duties ought to embody:
- Verifying fan and motor alignment
- Reviewing vibration ranges or taking spot vibration measurements
- Inspecting and changing worn belts as wanted
- Checking the fan wheel for put on, looseness, buildup, or imbalance
- Inspecting ductwork at elbows, transitions, helps, and different high-wear areas
- Checking dampers and transferring elements for corrosion, put on, or sticking
- Inspecting fasteners, structural helps, and entry sections
- Verifying compressed air strain and high quality for pulse-jet techniques
- Reviewing discharge units and waste dealing with practices
For pulse-jet techniques, that is additionally time to confirm that compressed air high quality and strain are the place they need to be. If the cleansing cycle isn’t working correctly, the system might proceed working whereas steadily dropping efficiency.
Watch Out for Differential Strain Developments
Differential strain is among the most helpful indicators in a mud assortment system, however solely when it’s tracked persistently and interpreted in context.
A rising strain drop usually means that filters are loading, airflow is changing into restricted, or the cleansing system is now not restoring anticipated efficiency. That doesn’t at all times imply filters should be changed instantly. In some circumstances, the issue could also be tied to course of adjustments, cleansing sequence points, compressed air provide, or a shift in how the system is getting used.
A sudden drop in differential strain might be simply as necessary. Relying on the system, it could level to filter harm, leakage, or one other situation permitting air to maneuver via the collector in another way than meant.
The worth isn’t in any single quantity. It’s within the development. Retailers that set up a standard working vary and examine significant motion away from that baseline are in a a lot better place to plan upkeep as a substitute of reacting to it.
Fan Situation Acts as an Early Warning System
Followers hardly ever fail with out warning. Extra usually, the warning indicators are merely straightforward to disregard.
A fan that begins vibrating greater than normal, develops a brand new tonal change, or reveals indicators of warmth on the bearings is normally telling upkeep one thing. The trigger could also be so simple as build-up on the wheel, belt put on, looseness, or alignment drift. Left unaddressed, these smaller points can create bigger ones: bearing failures, diminished fan pace, extra extreme vibration, or an surprising shutdown.
That’s the reason common fan checks matter. Listening, observing, checking belt put on and sheave alignment and anticipating recurring lubrication issues can go a good distance towards catching an issue earlier than it turns into a mechanical occasion.
Acquainted Upkeep Patterns
One benefit of working with mud assortment and fume extraction techniques is that many failures are usually not mysterious. They have a tendency to repeat in recognizable methods.
Loaded or broken filters usually present up first via rising differential strain, weaker seize, or seen emissions. Worn belts might reveal themselves via unstable airflow, warmth, or dusting across the drive. Bearing put on usually seems as some mixture of noise, warmth, vibration, or lubrication hassle. Dampers and blast gates can quietly scale back system efficiency once they start sticking or fail to maneuver as meant. Even small air leaks at entry doorways, seams, or worn duct sections can erode effectivity over time.
Fan wheel buildup is one other recurring situation, particularly the place particulate traits or course of circumstances encourage accumulation. In lots of outlets, that buildup isn’t found till vibration will increase sufficient to attract consideration. By then, what may have been corrected throughout routine upkeep is already affecting mechanical situation.
Bear in mind the Security Fundamentals
Even a sensible upkeep program is dependent upon disciplined isolation. Earlier than inside inspection, adjustment, or service work begins, the gear must be correctly remoted and plant lockout procedures adopted. Rotating gear, compressed air, saved power, and picked up materials all create hazards when upkeep is rushed.
The shop-floor level is straightforward: Tools that’s remoted correctly is safer to examine, simpler to service appropriately, and fewer more likely to create follow-up issues.
The Aim: Keep away from Emergency Response
A great preventive upkeep program isn’t constructed round heroics. It’s constructed round routine consideration to small adjustments in system situation.
A weekly walkaround, a month-to-month evaluation of strain traits and part situation, and a quarterly mechanical inspection can catch most of the points that may in any other case flip into airflow complaints, soiled work areas, or unplanned downtime. For fabrication outlets, which means extra secure system efficiency, higher use of upkeep labor, and fewer disruptions to manufacturing.
Mud assortment and fume extraction techniques might function within the background, however they shouldn’t be handled as background gear. When outlets examine them persistently and monitor efficiency over time, upkeep turns into extra predictable, repairs develop into extra deliberate, and manufacturing turns into simpler to guard.
