As laser welding continues to realize traction inside tube fabrication outlets and manufacturing vegetation as an environment friendly, high-quality welding course of, security concerns have gotten essential.
Historically, laser welding has been confined to automated programs inside enclosures which have doorways and tinted home windows to guard personnel. Now, with the innovation of high-powered hand-held programs, laser welding has change into cellular, and that requires further concerns for safeguarding operators and different personnel within the work space.
Hand-held laser welding provides pace, precision, and lowered distortion on materials as much as about ¼ in. thick. It additionally might help less-experienced welders present higher-quality welds than they may earlier than. With welders in excessive demand, this can be a large benefit; manufacturing manufacturing strains can’t await an operator to change into a seasoned welder.
However this “fast” resolution presents distinctive security hazards that demand specialised coaching, private protecting gear (PPE), and a correct facility and flooring plan. The excellent news is that these all are achievable, and with them, the dangers of laser welding may be simply mitigated.
Understanding Laser Hazards
Worldwide requirements classify lasers in response to output energy and related hazards. Laser welding programs carry immense optical energy density, measured in watts per sq. millimeter, that may soften metallic. Due to this energy, hand-held laser welding machines are universally rated as ANSI Class IV, the best hazard class, which requires strict engineering controls, licensed PPE, and operator coaching earlier than use.
Laser gentle stays tightly centered over longer distances than regular white gentle. Mirrored laser gentle retains greater than 90% of its authentic depth, so it could hurt not solely the welder but in addition co-workers and close by gear (see Determine 1). Easy or metallic surfaces create mirror-like reflections (specular), whereas rougher supplies trigger reflections that scatter in a number of instructions (diffuse) (see Determine 2). Each are harmful.
When a laser beam focuses on a human eye, it could immediately burn retinal tissue. As well as, direct or mirrored laser welding gentle may end up in extreme pores and skin harm, together with third-degree burns on any uncovered space. Laser gentle can also current hearth and electrical hazards, significantly from concentrated reflections putting close by flammable supplies.
Security Suggestions for Laser Welding Operations
As a result of laser gentle is a distinct frequency from arc welding gentle, corporations should use security gear designed particularly for laser welding. Normal welding helmets and welding curtains don’t present safety in opposition to laser gentle.
Determine 3 exhibits a standard welding helmet severely broken after lower than 10 seconds of publicity to a mirrored laser beam. Even transient, oblique contact can wreck protecting gear that isn’t licensed for laser welding and trigger everlasting harm.
Following are some security gear suggestions for hand-held laser welding operations.

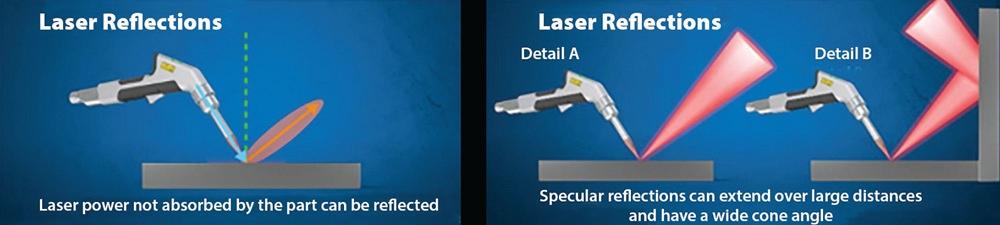

FIGURE 1. A laser retains most of its intense power when it’s mirrored, so it’s nonetheless able to inflicting critical harm.

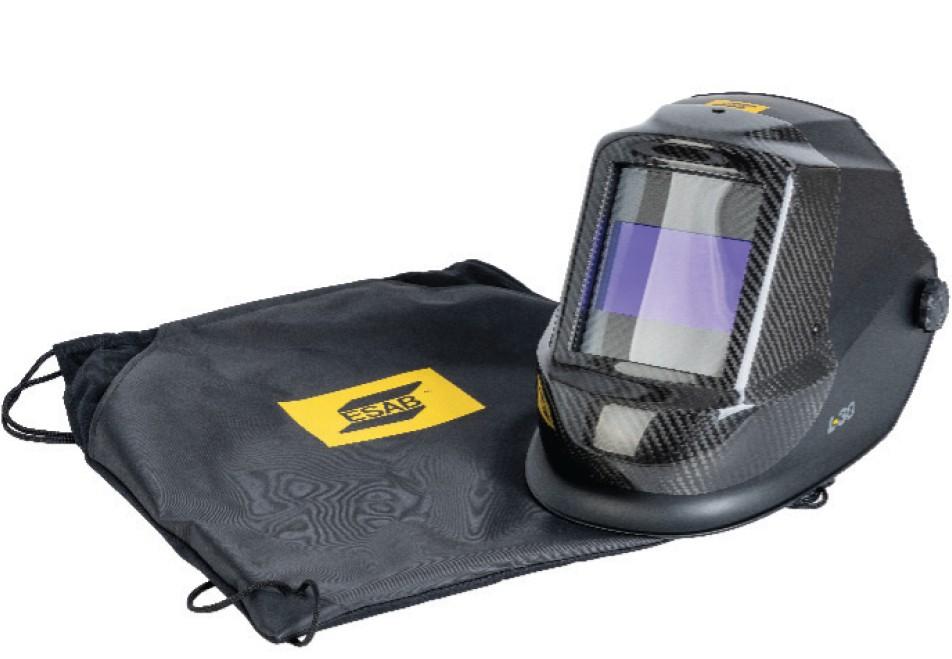

Welding Helmets and Filter Lenses. Helmets ought to meet ANSI Z136.1-2022 or EN 207 D LB6 requirements for secure use of lasers (see Determine 4). These rankings be certain that each the filter lens and helmet can face up to the particular wavelength (1080 nm, for instance) and depth of a Class IV laser. It’s a good suggestion to examine OSHA requirements as effectively.
Zero-standard welding helmets additionally work, however only some welding helmet shells at the moment meet this certification.
Curiously, the filter lens on a laser-certified helmet can’t be eliminated or changed. It’s put in completely in order that an operator can’t unintentionally change the lens with a noncertified one.
Laser-Particular Security Glasses. Security eyewear is a essential part in any industrial setting, and it’s required for all welding actions. Nevertheless, eye safety for laser use is a extra advanced problem.
Historically, laser use was principally restricted to lab or medical environments, and laser eyewear was designed to guard the eyes from very particular gentle radiation wavelengths. Lasers utilized in tube fabrication, particularly hand-held lasers, are typically extra highly effective, and the reflectiveness of many metals will increase publicity hazards for the welder and people close by.
It’s practically inconceivable to foretell how laser gentle will mirror off the fabric throughout hand-held laser welding, so the welder wants extra than simply eye safety. Laser-specific protecting eyewear is just efficient when utilized in mixture with EN 207 or ANSI Z136.1 security gadgets, resembling enclosures, face shields, and welding helmets.
Protecting Clothes. Operators should put on leather-based gloves. Flame-resistant attire sometimes used for arc welding could also be appropriate, however leather-based physique safety is greatest and extremely advisable. It’s because
commonplace arc welding jackets might not resist laser power or mirrored radiation.
Notice that quick sleeves, open V-neck shirts, and different skin-exposing attire is strictly forbidden for laser welding. Cowl all pores and skin and do not forget that mirrored laser gentle stays extremely harmful.
Enclosures, Screens, and Partitions. Workspace design performs as essential a task as PPE in hand-held laser welding security. Laser welding ideally is carried out inside an ANSI Z136.1- or EN 207-certified enclosure with fume extraction, not less than 4 partitions, and a roof to forestall stray beams from escaping.
Additional, the door of the enclosure should be linked to an interlock swap on the laser that disables the laser when the door is open. This prevents different operators from publicity in the event that they enter the enclosure. Posting a “Laser in Use” signal outdoors the enclosure each time the system is energetic provides one other measure of security.

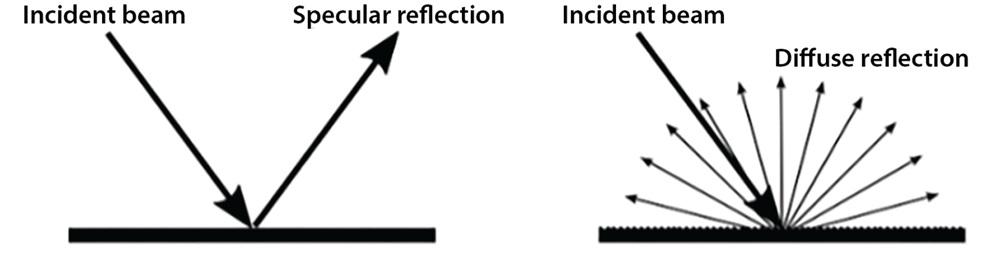

FIGURE 2. When a laser beam hits metallic, the reflection may be specular or diffuse. Even secondary reflections can retain a lot of the laser’s authentic power, making a hazard for welders and their co-workers.
Along with an enclosure, corporations might select to supply additional safety in opposition to diffuse gentle for individuals who work outdoors of the managed laser space by deploying laser curtains and barrier panels. Notice that conventional welding screens can not present the required stage of safety.
Making a Tradition of Laser Security
Hand-held lasers are a serious development in welding know-how, however in addition they require a shift in how the business should take into consideration security. To construct a robust security tradition:
- Assign a professional laser security officer to supervise compliance and emergency procedures.
- Conduct laser hazard assessments earlier than introducing new programs.
- Practice all personnel on the distinctive hazards of optical radiation.
- Use solely licensed gear—no exceptions for helmets, filters, or enclosures.
- Audit frequently to confirm continued compliance with ANSI Z13.6, EN 207, and native laws.
Hand-held laser welding is redefining tube fabrication with precision, pace, and portability, however its potential may be realized safely solely by disciplined and sensible adherence to laser radiation security requirements. By combining licensed PPE, managed environments, and skilled oversight, producers can totally leverage the productiveness of hand-held laser welding whereas making certain a secure office for each worker.
