Have you ever ever puzzled concerning the numerous numbers and letters which are assigned to the Pfeil lino and woodcut instruments? It’s a query we’re usually requested by clients, so on this article, we’re attending to the underside of Pfeil’s coding system and the way it interprets into mark-making, hopefully making selecting the instrument you need a lot simpler.
Decode Pfeil Lino and Block Cutter Numbers
Pfeil’s Ranges of Wooden and Lino Cutters
Printmakers around the globe love Pfeil lino and woodcut instruments. Made in Switzerland with particular alloyed metal and Swiss-grown hardwood handles, Pfeil instruments are recognised to be a number of the best you should purchase. Manufacturing of the primary carving instruments started in 1942 and shortly proved extraordinarily standard amongst skilled carvers and amateurs alike, each in Switzerland and overseas. Usually printmakers will graduate onto these instruments after some expertise in reduction printing; nonetheless, we fairly often hear artists communicate of a change of their follow as they’re able to realise photos that align extra carefully to their authentic imaginative and prescient.
The handles on the Pfeil lino and block cutters will be described as mushroom-shaped, having developed from early engraving instruments that will have had mushroom, pear-shaped, balloon-shaped, or spherical handles. The spherical head of the deal with is designed to take a seat snugly within the palm of your hand together with your fingers gripping the shaft. This form means that you can get down near the slicing floor and maximise the effectivity of the pressure you apply from behind the instrument.
Pfeil makes two ranges with mushroom handles, the lino cutters whose codes start with the letter L, as in ‘L 1s/8’ and the marginally bigger block cutters whose codes start with the letter B, as in ‘B 8a/10’. It ought to be famous that each ranges can be utilized for wooden and lino, however the B vary is designed particularly for each. A few of the very positive lino cutters (L vary) could be too positive for wooden. The handles on these two ranges differ barely in measurement: the lino cutters have a deal with diameter of 54 mm, whereas the block cutters have a deal with diameter of 57 mm. As well as, Pfeil does a mallet deal with vary for wooden, with codes starting with the letter D. Throughout all these ranges, the coding system for the slicing profiles is similar.
Pfeil Reducing Profiles
Pfeil has created its big selection of gouge shapes progressively over a few years. Starting with a really small set of round 12 designs, every drawn by hand, outlined, after which manufactured. Over time, new shapes and sizes emerged in between the unique designs. As Pfeil explains: “We constructed on the unique designs as a result of the numerical designations had turn out to be established.”
As a result of these shapes have been hand-drawn, Pfeil’s numbering system shouldn’t be mathematical and can’t be calculated or derived. Specifically, the numbers don’t relate to a radius of curvature, a geometrical measurement used to explain how sharp or light a curve is (a tighter curve has a smaller radius and a gentler curve a bigger one).
Pfeil cutter codes will not be calculated utilizing this technique – as they clarify: “It by no means made sense for us to revamp the drawings and radii in keeping with a mathematical system. From our standpoint, it’s merely not essential for the top person. We consider that carving is an artwork and never a mathematical calculation, and we didn’t wish to make a longtime system extra difficult than it already is.”
The form of the innovative is indicated by the primary digit within the code – for instance, the ‘9’ in L 9/2. So, in the event you decide up a instrument and level the blade upwards, the quantity you see will probably be describing the form of the slicing profile, no matter its measurement.

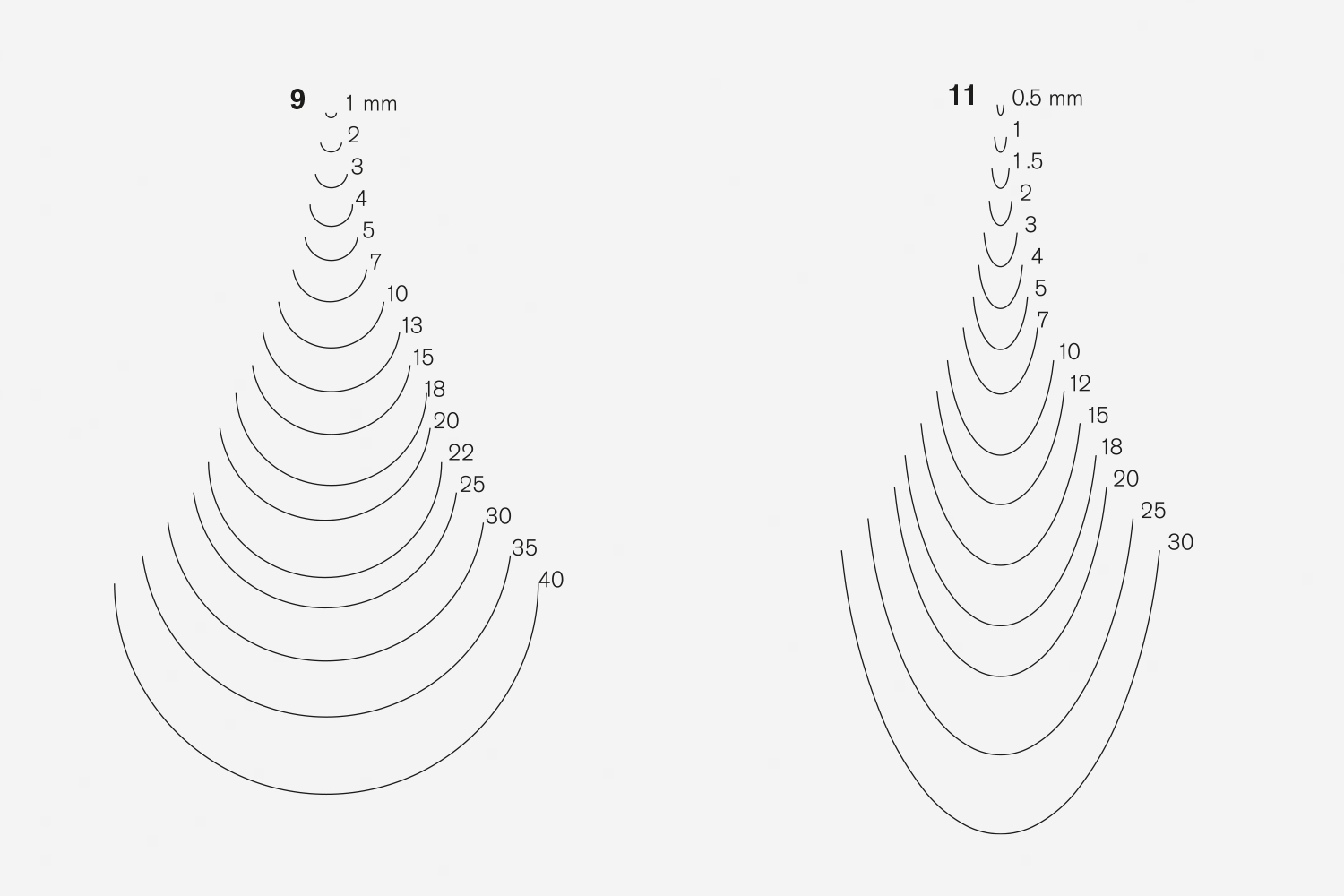

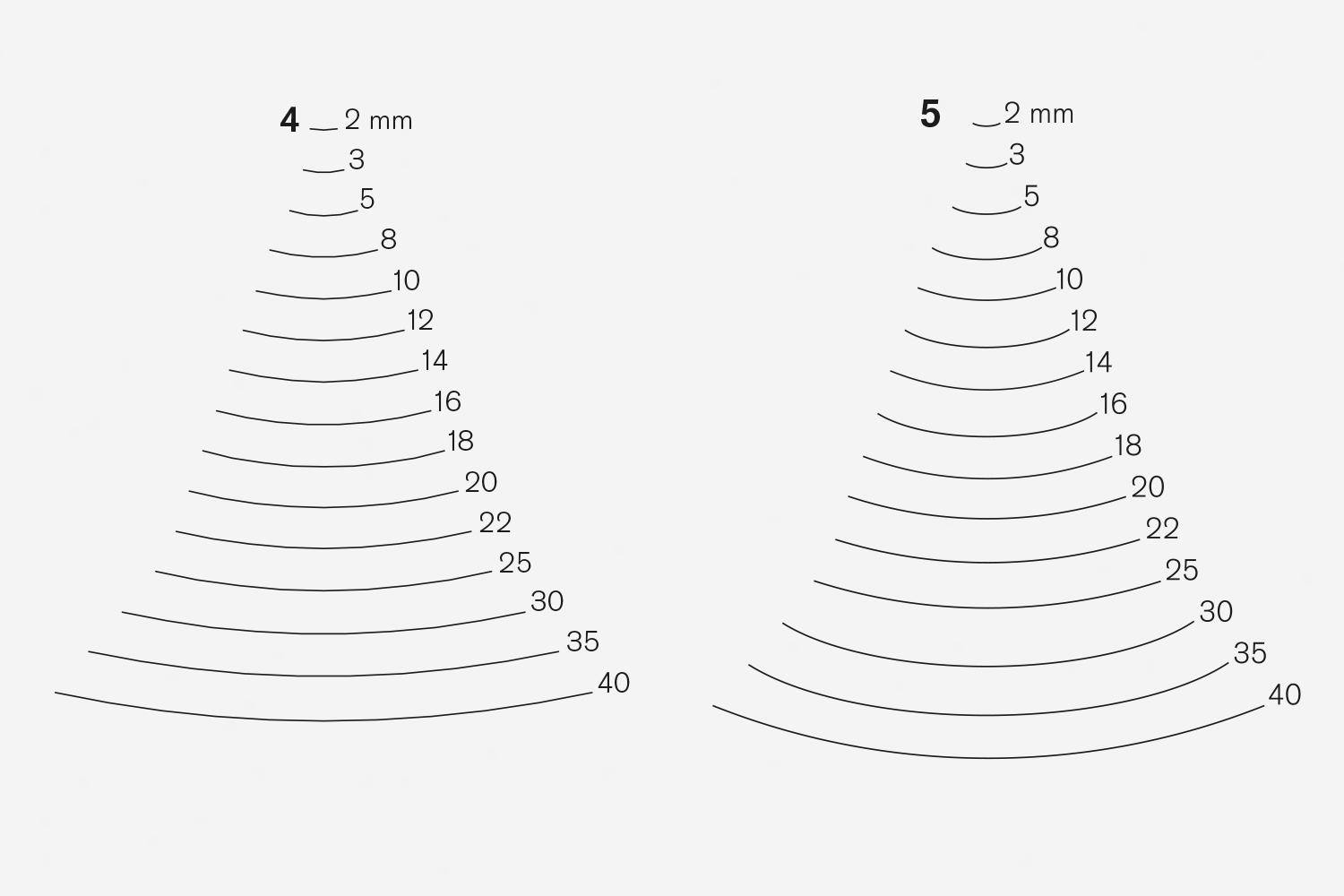

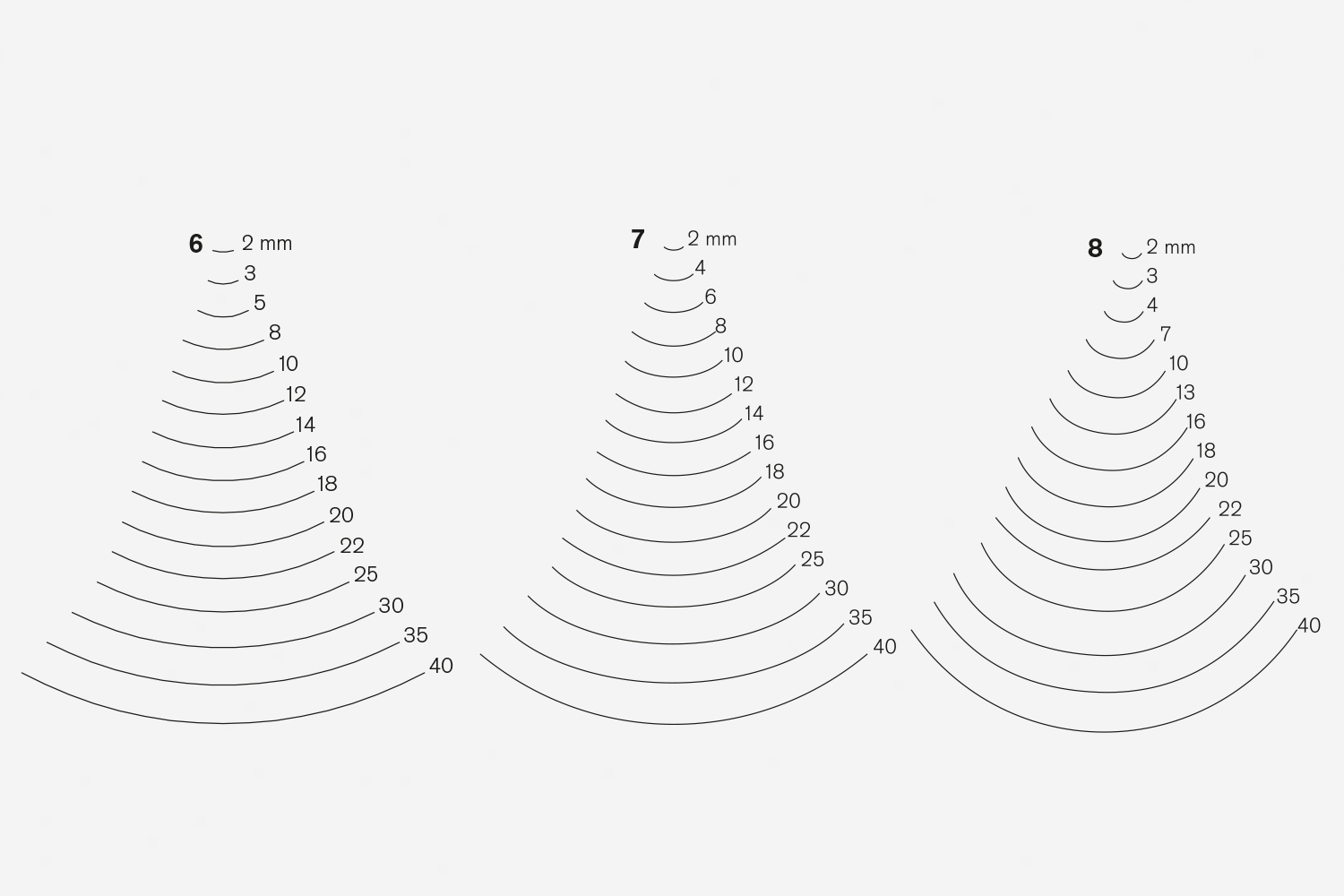

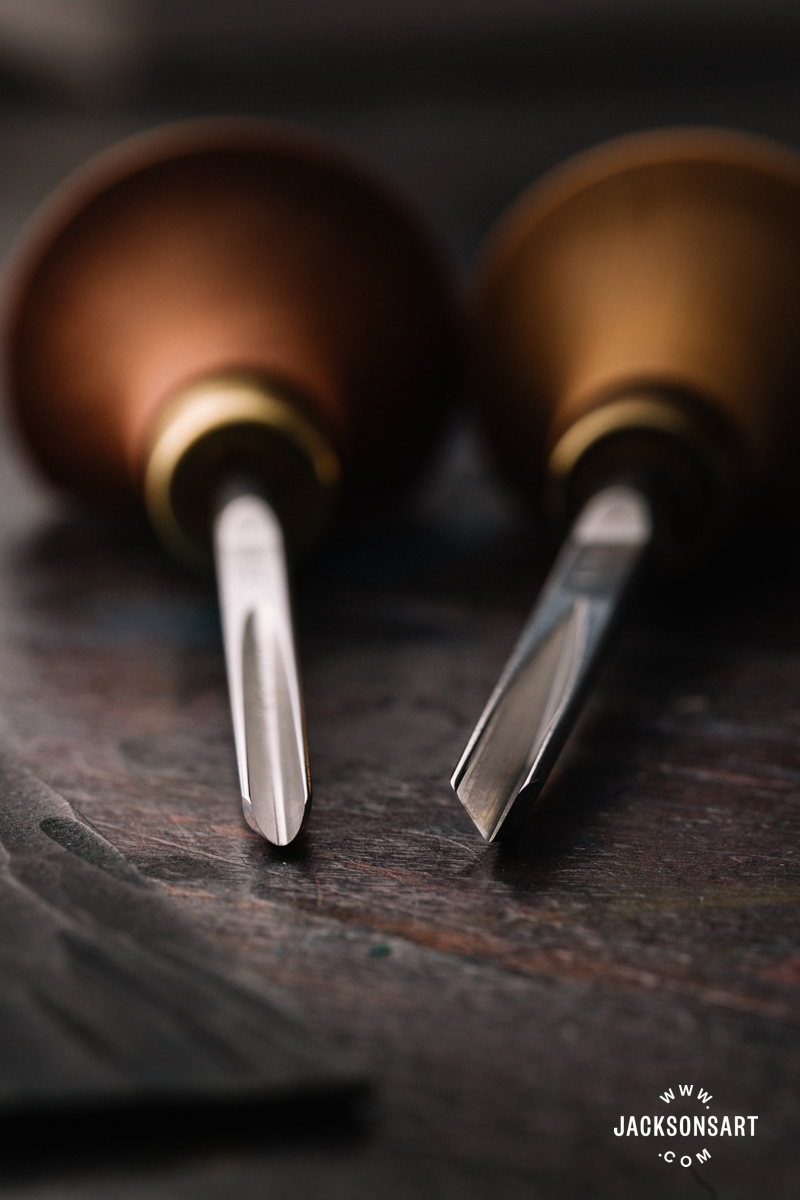

The #1 is at all times a flat, straight blade with a bevel on each side. The upper the digit, the extra curved the form, continuing from 1 to 9 till we attain quantity 11, which has a particular U-shape.

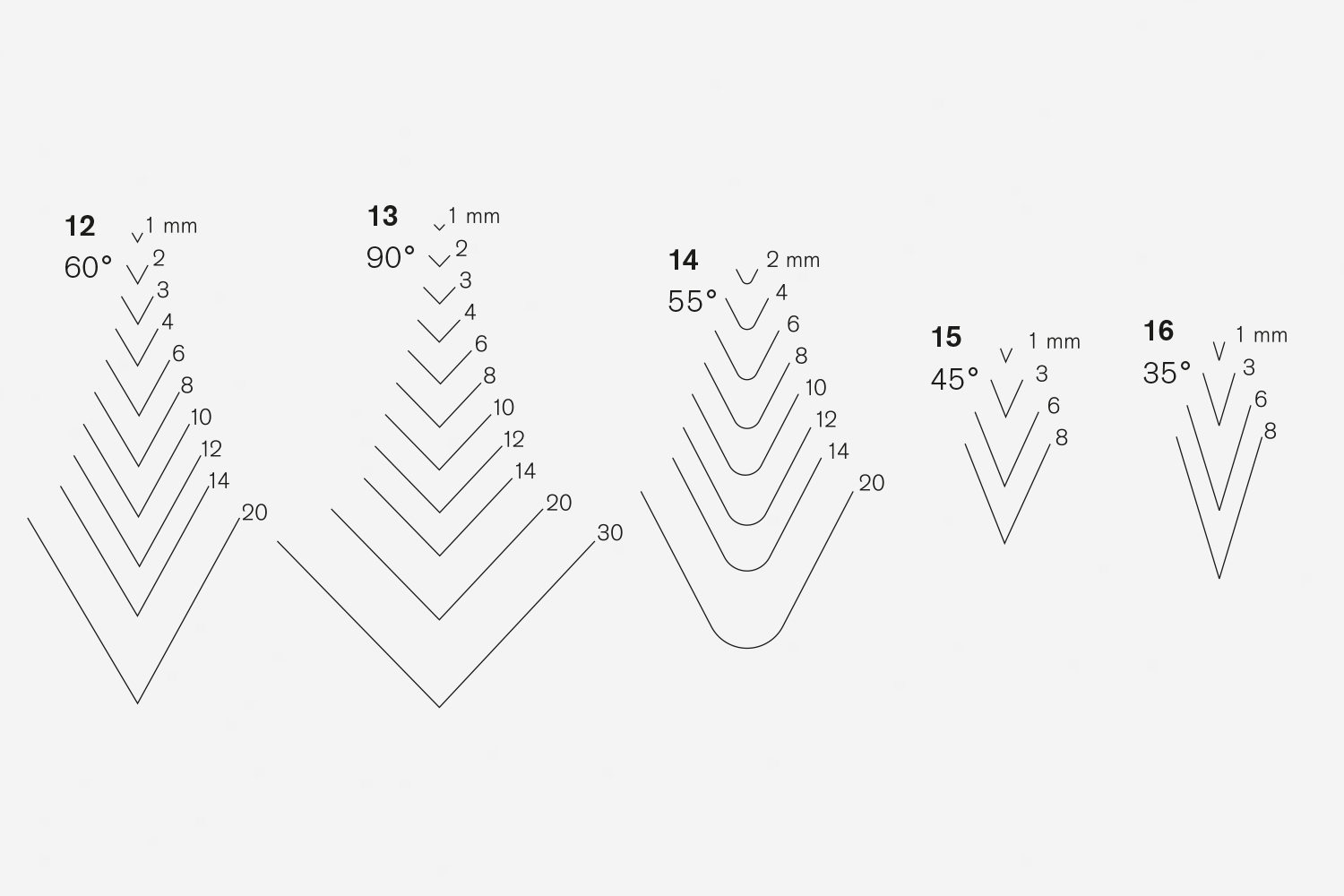

As soon as we attain quantity 12, Pfeil is describing V instruments of assorted angles; quantity 12 is a V instrument with a 60° angle, and the others will be seen within the picture beneath. There may be additionally a reverse innovative, numbered 25.
Unpicking the Remainder of the Pfeil Instrument Code
Generally we discover a letter after the primary digit – as on this code: B 8a/10. This letter describes a further modification to the shaft of the instrument, together with the form of the innovative described by the previous quantity.
a = quick bent or spoon bent shaft that enables for deeper and shorter cuts. Discovered on some V’s and the broader U’s.
L = lengthy bent shaft that enables for deeper and shorter cuts. Discovered on some V’s and the broader U’s.
s = skew or angled edge, helpful for exact slicing or accessing tough to succeed in corners.
F = fishtail or splayed edge, once more helpful for accessing tough to succeed in corners. Discovered on mallet deal with woodcut vary.
Lastly, the second digit describes the width of the innovative in millimetres.
Armed with all this data, we will now look at some examples of Pfeil instrument codes:

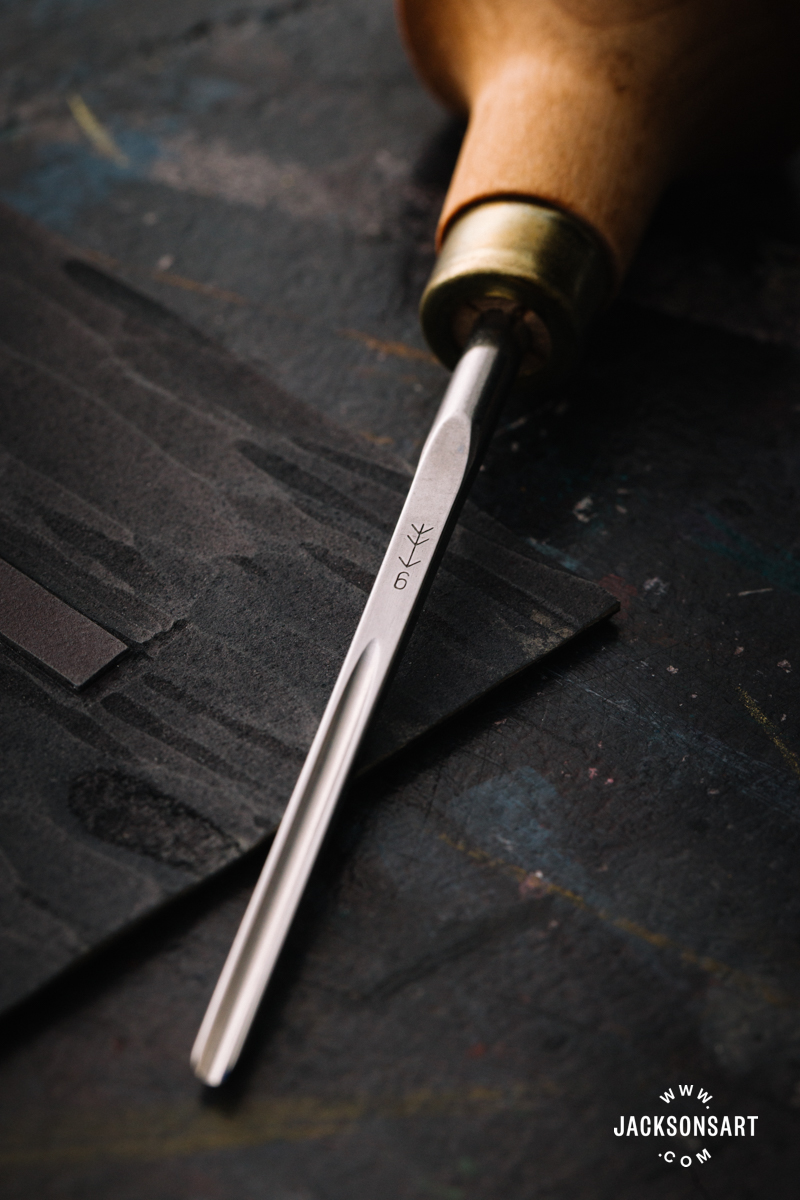

‘L’ means lino cutter
‘9’ means a quantity 9 curve, which is a deep U gouge
‘2’ means the curved innovative is 2mm extensive

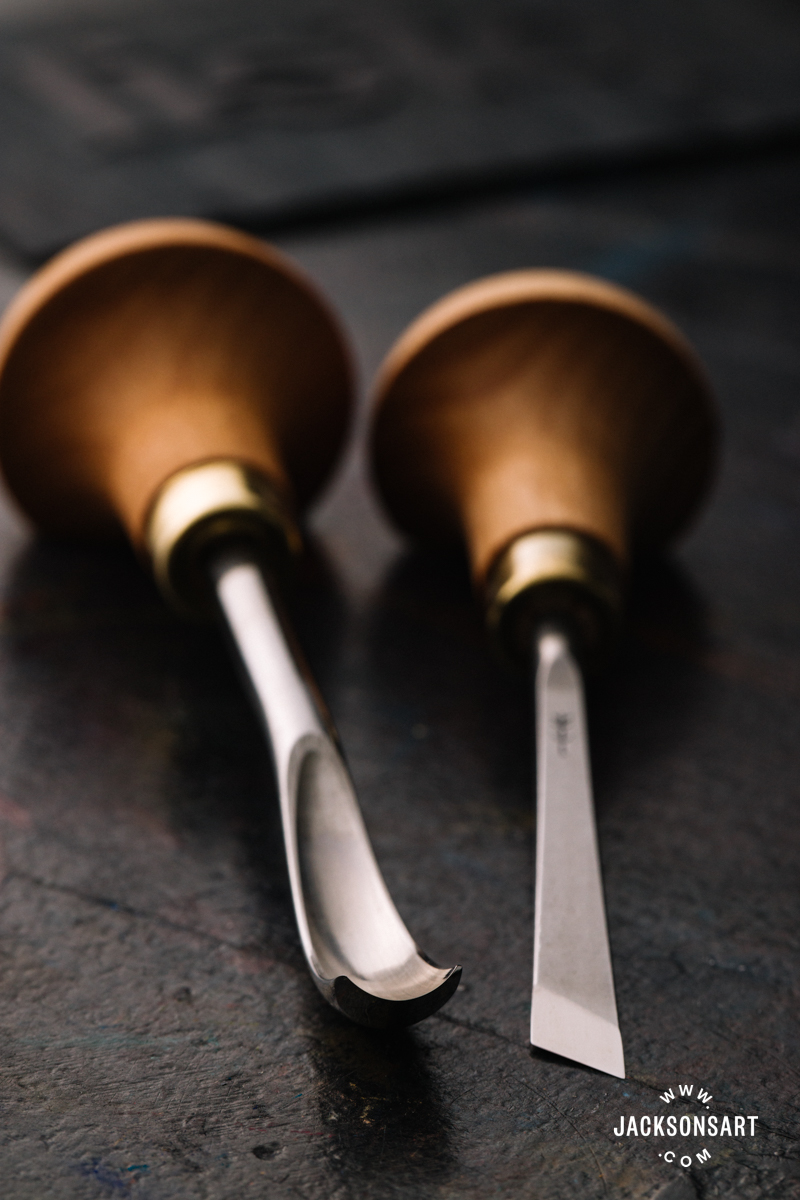

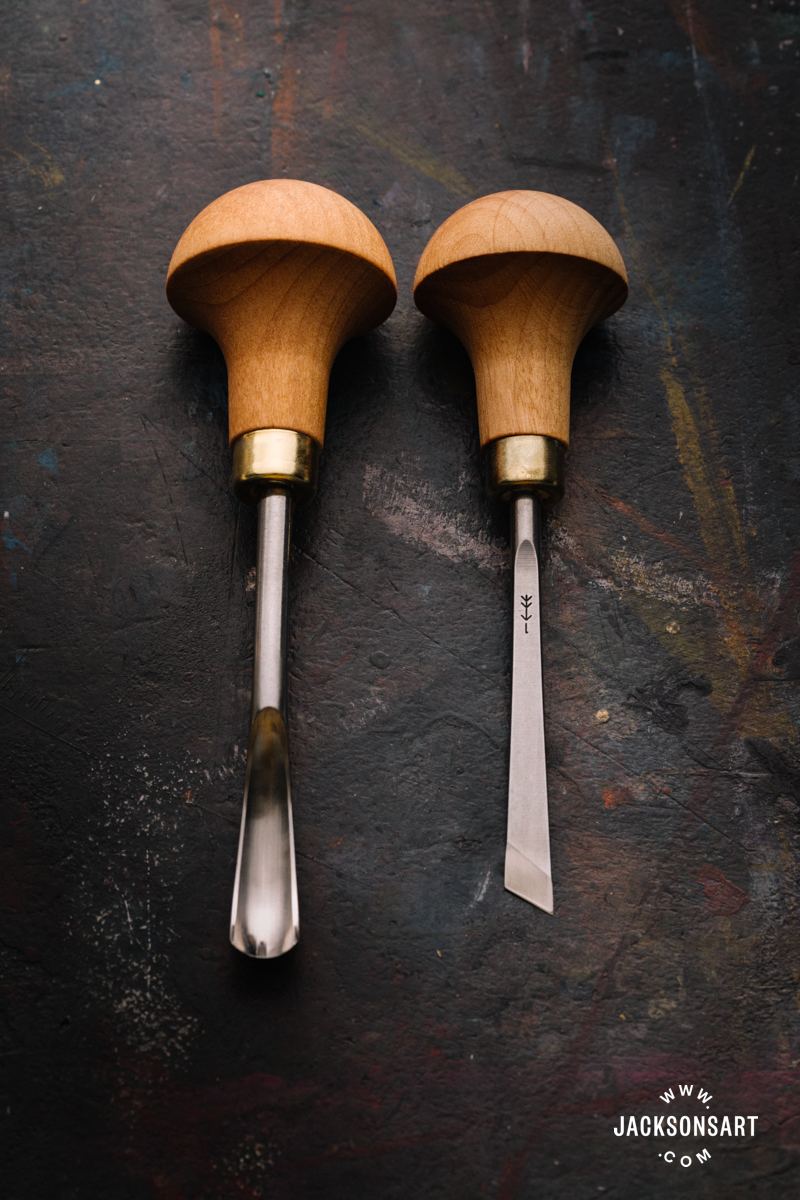

‘L’ means lino cutter
‘1’ means a no 1 curve, which equates to a flat
‘s’ means the sting is skewed/angled
‘8’ means the innovative is 8mm extensive
‘B’ means a woodblock and lino instrument
‘8’ means a quantity 8 curve, which is a considerably curved U gouge
‘a’ means a brief bent, or spoon bent shaft
‘10’ means a 10mm extensive innovative

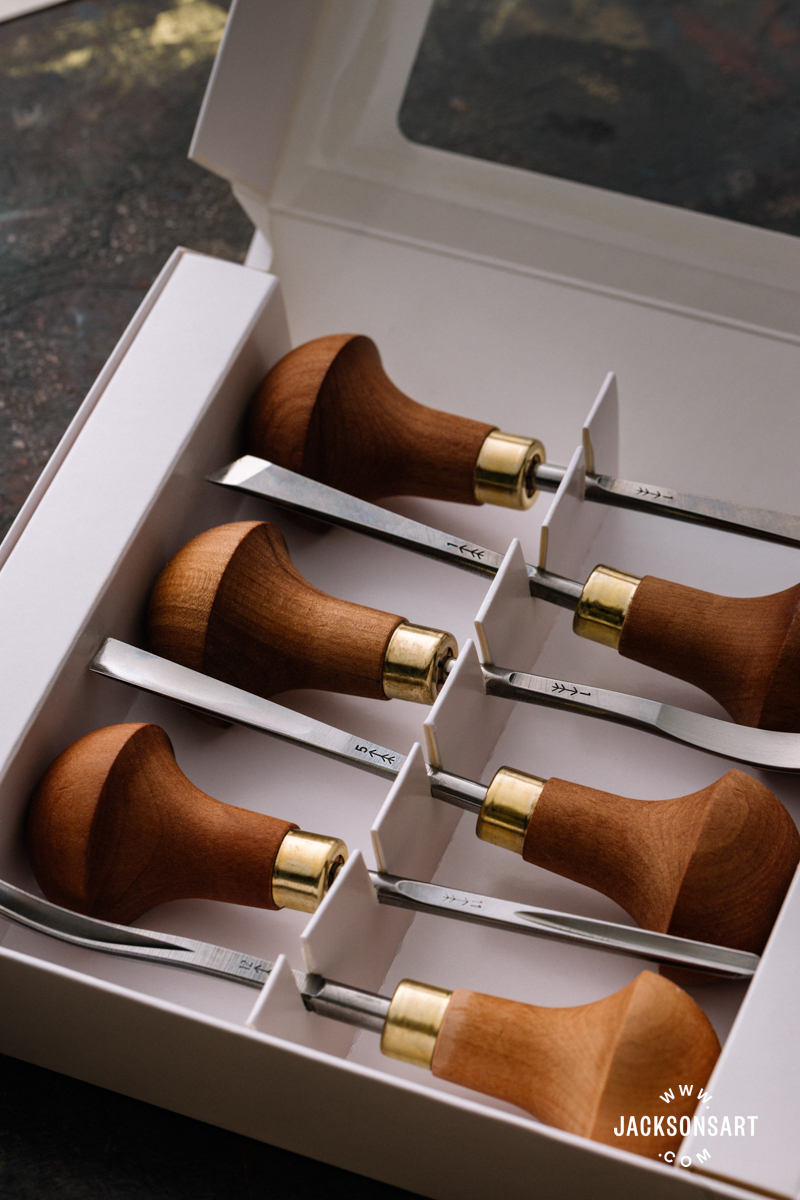

Pfeil Linoleum and Block Cutter Set A

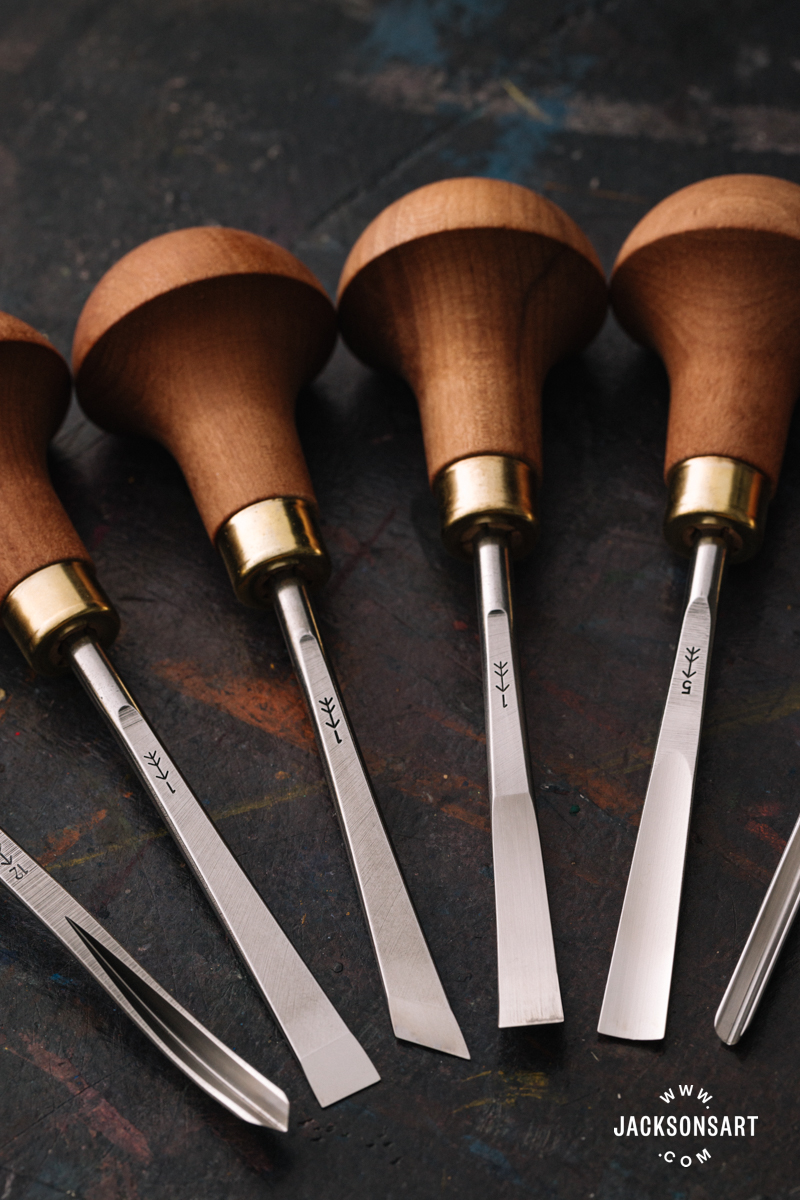

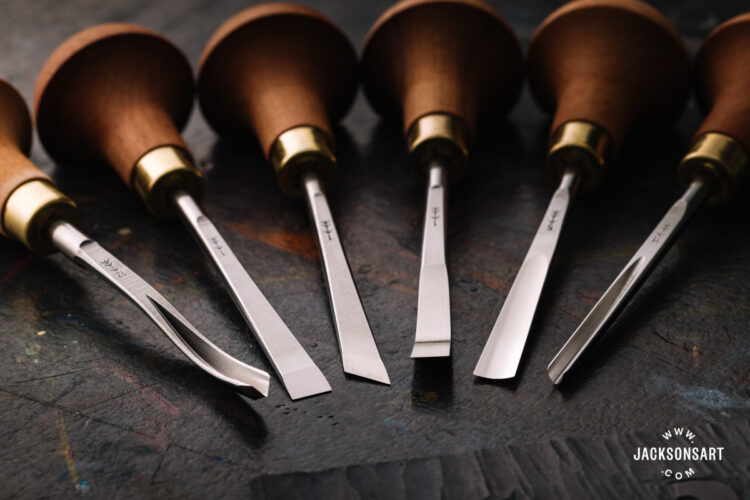

From Left: L 12a/4, L 1/8, L 1s/8, L 1a/8, L 5/8 and L 11/3
And, if we’re feeling formidable, we will interpret the contents of a complete set.

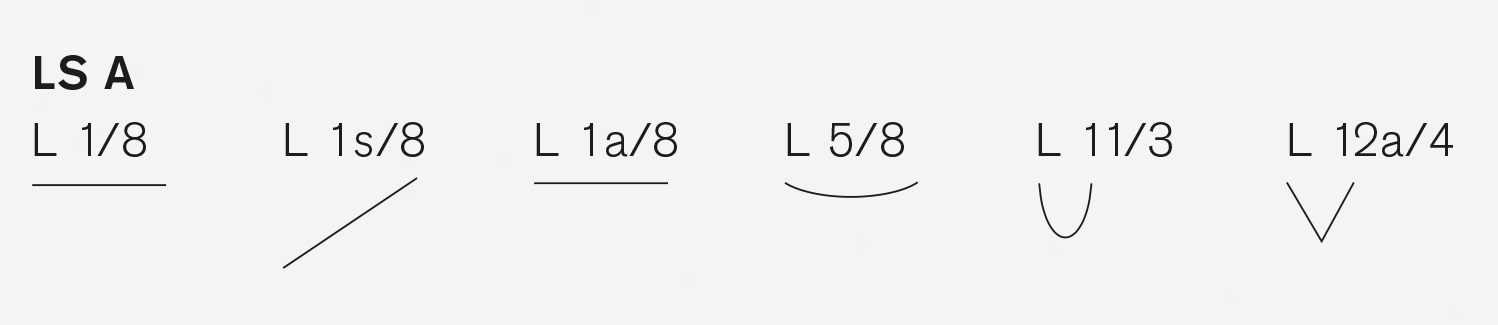

Set A incorporates L 1/8, L 1s/8, L 1a/8, L 5/8, L 11/3, and L 12a/4:
L 1/8 – is a straight/flat lino gouge, with a innovative 8 mm extensive.
L 1s/8 – is a straight/flat lino gouge with a skewed/angled edge with a innovative 8 mm extensive.
L 1a/8 – is a straight/flat lino gouge with a short-bent shaft and a innovative 8 mm extensive.
L 5/8 – is a quantity 5 (medium) curve lino gouge with a innovative 8 mm extensive.
L 11/3 – is a quantity 11 (deep U) curve lino gouge with a innovative 3 mm extensive.
L 12a/4 – is a V form lino gouge with a brief bent shaft and a innovative 4 mm extensive.
Increasing Your Vary of Pfeil Lino and Block Cutters
Hopefully, the above explanations will allow you to make an knowledgeable alternative when including to your assortment of Pfeil instruments. If, for instance, you’re keen on the constant parallel line you possibly can obtain with a quantity 11 curve, you possibly can go smaller with L 11/0.5 or bigger with L 11/3 in that very same form. When you just like the swell and taper of marks made together with your V cutter, you possibly can go smaller L 12/1 or bigger L 12/4.
Pfeil instruments are additionally obtainable in a spread of specifically chosen units, good in the event you’re simply beginning out or if you wish to increase your toolkit. The Colin Blanchard set is a superb place to start, because it incorporates a variety of shapes that can be utilized as a information for beginning your assortment.
Now that you recognize a bit extra about what every form and measurement affords, the advantages of every set ought to be extra simply comprehensible.
