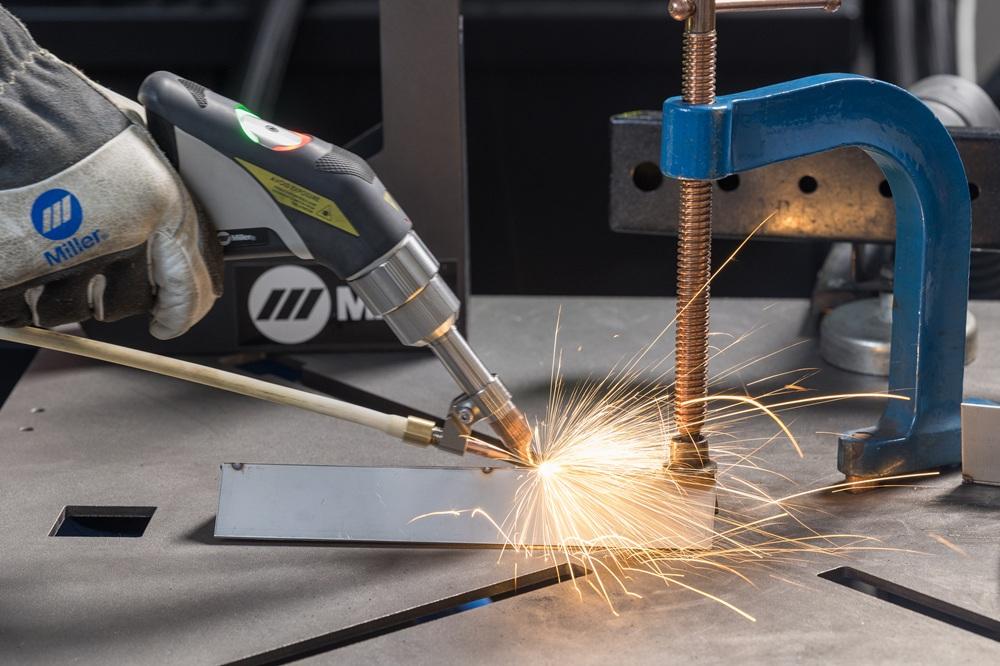

Hand-held laser welding is like TIG welding in that the filler metallic absorbs the warmth from the weld puddle.
Many various industries are beginning to use aluminum alloys rather than metal or stainless-steel. Among the most important drivers behind this shift are the fabric’s straightforward machinability, its corrosion resistance that comes from the naturally forming floor oxide, and the light-weight nature of the fabric.
Applied sciences resembling computer-aided design are also serving to drive adoption, as engineers and designers can simply mannequin elements with advanced geometries to raised use the bottom metallic’s energy.
The Fabrication World
With this shift in base metallic alloys comes new issues for the welding and fabrication group. Most welders get their expertise welding on common carbon metal, so the considered welding aluminum could appear daunting—the tools, weld preparation, approach, and filler metallic are all totally different. As we speak, we are going to concentrate on the filler metallic, as it’s usually ignored.
Common carbon metal welding is dominated by the usual ER70S wire. Because it’s the first choice, filler metallic choice is straightforward. When transitioning to welding on aluminum and its alloys, nevertheless, selecting a filler metallic just isn’t as easy. It requires a extra intentional filler choice strategy than metal.
This intentional strategy entails figuring out two basic parts: the filler alloy wanted and the suitable measurement filler metallic for the method and software.
Aluminum Filler Steel Choice
Selecting the mistaken filler metallic alloy may result in points resembling cracking throughout solidification of the weld pool; elements failing in service resulting from inadequate energy; and even points in postweld processing, resembling anodizing. So choosing the one which finest matches your software is essential.
AWS A5.10 requires filler metals to be examined for high quality assurance and recognized to allow them to be distinguished from each other. The Aluminum Affiliation and respected producers, resembling Hobart, publish aluminum filler metallic choice charts to assist welders make knowledgeable selections.
Utilizing the header and the left column of a variety chart, cross reference to the related sq.. The sq. signifies which alloys are suitable with out cracking, however it additionally requires you to contemplate different components:
- Energy within the as-welded situation
- Ductility of the weld metallic if forming or bending operations are to be accomplished downstream
- Corrosion resistance in fresh- and saltwater environments
- Response of the fabric at sustained elevated temperatures of 150 to 350 levels F
- Colour matching of elements that shall be anodized
- Capability of the fabric to reply to postweld warmth therapies
- Toughness, or the flexibility to bend with out cracks propagating
For instance, when welding a standard billet alloy resembling 6061, you could select a 4943 filler metallic due to the upper resistance to scorching cracking. Nevertheless, if you happen to plan on anodizing the half, this is able to not be a good selection. The 4xxx collection alloys won’t color-match when anodizing, so on this case, the 5356 can be a better option. Merely said, choosing the proper alloy is a steadiness of crack resistance, energy, and downstream ending wants.
Filler Steel Sizing
As soon as you already know the specified alloy, you may decide which diameter you want. Whereas the method of choosing the diameter is barely much less scientific than choosing the alloy, it will possibly play a crucial position within the success of the method. Selecting the proper diameter is crucial for weld high quality, ease of operation, and general course of consistency.
In case you are utilizing a wire feed course of resembling fuel metallic arc welding (GMAW, or MIG), you’ll be making a barely totally different alternative than with fuel tungsten arc welding (GTAW, or TIG) and hand-held laser welding.
MIG. On this course of, the electrical energy flows by means of the filler wire and generates an arc between the wire and the half. Ultimately sufficient warmth is generated to soften the wire, which then is deposited on the half being welded.
Smaller wires resembling 0.035 in. take much less warmth to soften, so they’re generally used for skinny functions. Bigger-diameter wires resembling 3/64 or 1/16 in. require a considerably larger quantity of vitality to soften. Because of this, they’re discovered extra generally in functions that require vital weld deposition on elements with adequate mass to dissipate the warmth with out blowing by means of or shedding management of the weld puddle.
TIG. With the TIG course of, warmth is generated individually from the filler metallic. The torch is used to ascertain a puddle on the bottom metallic earlier than the addition of filler metallic. The filler metallic then is melted with the puddle—not the arc. This deposition not solely cools the weld puddle, however it additionally creates the generally desired “stack of dimes” look.
Utilizing a filler metallic that’s too giant in diameter causes the puddle to shut utterly, whereas a filler metallic that’s too small ends in inadequate cooling of the weld puddle, making it tough to manage the method. rule of thumb is to decide on a filler metallic that’s barely smaller in diameter than the thickness of the bottom metallic and by no means bigger than the bottom metallic thickness. For instance, on 1/8-in. aluminum sheet, you would possibly go for a 3/32-in. diameter filler rod.
Hand-Held Laser. This welding course of is much like TIG in that the wire is absorbing warmth from the weld puddle and can restrict the weld penetration because the filler diameter will increase. Nevertheless, with a bigger diameter, you may anticipate higher feed traits, extra tactile suggestions within the journey velocity management, and an improved skill to bridge poor half fit-up. Most installations use 1/16-in.-dia. wire—with the method usually requiring gaps no bigger than the diameter of the wire.
Armed with the right data about filler metallic choice, you may weld aluminum and aluminum alloys confidently and mitigate fears of operating into issues with the metallic’s mechanical properties and weldability.
