Over the previous decade, funding in laser chopping automation has proliferated, and for good purpose: Employees can’t sustain. Machines have change into so quick that denesting, not the chopping itself, has change into the constraint. This has pushed some dramatic developments in blanking automation lately, from primary load/unload to superior storage and retrieval methods, and even automated cells that use automated guided autos (AGVs) to attach blanking and bending.
Should you haven’t automated your laser chopping operation, the place must you begin? And in case your automation journey’s stalled, how are you going to get it began once more? To reply each questions, The Fabricator spoke with Nick Plourde. The venture specialist with Elk Grove Village, Sick.-based MC Equipment Techniques—who, by the way, bought his begin on this trade as a laser operator—walked by way of 4 foundational components to assist level your workforce in the fitting route.
1. Know the Automation Alternate options
To know what’s potential, you first must know the sorts of blanking automation accessible. Right here, course of mapping offers a baseline.
“As a primary step, we watch every part and undergo current finest practices,” Plourde stated. “We deal with course of enchancment, take a look at current format, together with the place the fabric is coming from and the place it’s going. We’re trying to optimize circulation.”
From there, think about how your buyer combine may evolve, hypothetically, and marry that idea with the myriad automation choices in the marketplace.
For instance, Plourde described a hypothetical contract fabricator a few years into its blanking automation journey. This hypothetical operation has one plant devoted to a handful of high-quantity prospects that demand related merchandise. Every product household has a extremely outlined worth stream just like that of an OEM. Right here, blank-to-bend automation feeds minimize and fashioned elements to welding, paint, and meeting cells downstream.
Clean-to-bend automation incorporates material-delivery AGVs that hyperlink the 2 processes (see Figures 1 and 2). This stands aside from preparations by which AGVs ship minimize materials to work-in-process areas in numerous areas of the plant. The expertise, Plourde stated, successfully makes chopping and bending a “single course of,” with the general cycle time measured from the primary minimize to the ultimate bend.
He added that blank-to-bend automation may be extremely configured to match a producer’s software necessities. That stated, one potential association may begin with a laser chopping system with an automatic half sorting system that stacks blanks onto a pallet. These pallets span throughout two helps that give clearance for an AGV to maneuver beneath. The AGV lifts the pallet, then strikes it to a robotic bending cell with an analogous AGV docking station. RFID tags talk with the fabric dealing with robotic to convey the place these stacks of blanks are. From there, the robotic grasps the primary clean per this system, strikes it to a squaring desk, then commences the bend sequence.
“The essential component is the software program that communicates with all of the machines,” Plourde stated, explaining that software program ensures each component of the automation has the knowledge it wants at a given time. “We’d like transparency, and we have to document every part. How is the half sorter orienting the elements because it stacks them on the pallet? What number of elements are on the pallet that the AGV is bringing over to the press brake? All these elements and extra are tracked by software program.”
Such a system helps dial within the circulation for an outlined product household, however what concerning the “lengthy tail” of medium- and low-quantity jobs inside the contract fabricator’s product combine? Right here, our hypothetical operation dedicates a wholly completely different plant, with a blanking division largely divided by materials kind and job amount.

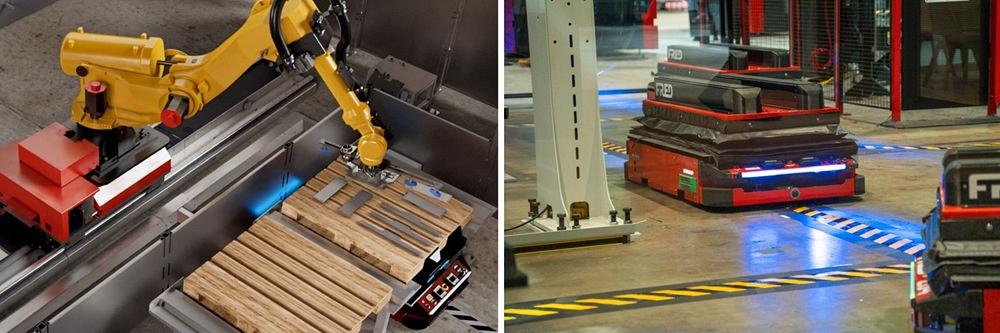

FIGURE 1. At left, an AGV presents blanks from a laser to a robotic that carries the elements to the press brake. At backside, the capabilities of the AGV in a blanking and bending cell are demonstrated at FABTECH 2025.
In a single space, the fabricator has machines with load/unload methods appropriate for lengthy runs of particular supplies that might happen in a single day. One other space may need towers with cartridges that may retailer uncooked inventory and beforehand minimize nests. This handles a portion of the product combine that requires a wide range of completely different grades and thicknesses. Some setups have a single tower feeding a laser, whereas others have towers feeding a number of lasers. Different automated machines provide quick access to the work envelope, so particular jobs (like those who use sheet remnants) may be carried out manually as wanted.
Spanning a wall in a separate space is a big computerized storage and retrieval system that feeds a number of lasers and shops minimize blanks for later denesting. This works nicely for high-quantity merchandise that serve completely different prospects, every requiring a wide range of job routings downstream.
2. Issue In Your Nesting, Tabbing, and Denesting Technique
As Plourde described, all these kinds of laser chopping automation share a couple of attributes, together with options that assist error-proof the method. Suction cup lifters have mechanisms to forestall double-sheet choosing, and contact sensors confirm sheet thickness (see Determine 3). Some have brushes that sweep over the slats to filter out any slugs and particles from the earlier job.
Slats help the sheets throughout chopping, and the way items span throughout these slats impacts their stability. A protracted, slender half may sit stably throughout the slats, but when sitting parallelto those self same slats, the piece may tip up and trigger a possible head collision—and, therefore, require a microtab. The tabs should be strategically positioned so that they simply break free with out disrupting a downstream operation.
For example, what if the stays of a tab “rock” in opposition to a backgauge finger on a press brake and trigger gauging issues? “Right here, you may select a micortabbing methodology the place the tab is left on the skeleton,” Plourde stated. The technique eliminates the necessity to take away that microtab in a secondary course of. The tabbing technique does go away a tiny divot on the half edge, so it doesn’t work for each half, however it will probably definitely work to forestall gauging points on the press brake.
Again within the blanking division, automated laser methods use forks that transfer in between the slats and beneath a minimize sheet. The trick is with the ability to keep away from tabbing the place potential whereas nonetheless utilizing tabs the place wanted to maintain the method steady, cycle after cycle, as forks raise minimize materials from the pallet to an offloading location.
As Plourde defined, trendy software program and tools options have helped optimize the method. “Right this moment, software program provides optimized toolpaths to make sure a steady chopping course of,” he stated, defining a “steady nest” as one which makes minimal use of tabs for simple denesting, whereas remaining safe because the forks transfer the fabric to the offloading station.
Having a tab-free nest opens the door for the following stage of laser chopping automation: automated half sorting (see Determine 4). As soon as the laser finishes its chopping cycle, a pallet strikes out to an offload station, the place half sorting grippers raise and stack items. Adapting to completely different job necessities, sure methods can swap out grippers, shifting amongst suction cups, magnets, specialised lifting instruments for hole-intensive elements, and even lifting instruments for clean shapes with extremely uneven facilities of mass. After this, forks slide in to raise and take away the skeleton.
Such expertise requires kerf widths that enable grippers to take away elements cleanly and reliably. Right this moment, completely different laser machine producers deal with the kerf width situation in numerous methods, however regardless of the methodology, the objective is identical: to make sure a easy, sufficiently large kerf for simple denesting and steady, automated half removing.
FIGURE 2. As demonstrated at FABTECH 2025, AGVs transfer alongside a magnetic monitor to ship elements to a robotic press brake.
Sure half geometries may profit from including aid areas within the minimize program to provide grippers the clearance they should raise the elements with out sticking or hangups. When essential, the programmer may resort to skeleton-destruct sequences, particularly for intricate half options that in any other case couldn’t be lifted out reliably.
After chopping and automatic part-picking, each the skeleton and remaining slugs (half cutouts) ought to sit steadily on the slat desk so the forks can transfer in, raise, and take away the scrap with out situation (see Determine 5).
3. Empower Personnel With Expertise
As of late, superior software program and equipment deal with a lot of the trivialities concerned in laser chopping, from nesting and toolpath creation to beam centering, in addition to optimizing a nest format for automation. As Plourde defined, main developments have come even inside simply the previous few years. “Issues have modified a lot since once I was a laser chopping operator,” he stated. “It’s loopy to consider. Expertise continues to march forward.”
When Plourde labored in a store, he carried out tape pictures to make sure the nozzle was centered inside the nozzle orifice, which he inspected to make sure it was undamaged and freed from particles and spatter. Any buildup can alter the circulation of help fuel across the laser beam and, therefore, drastically change the laser’s chopping traits.
He added that trendy expertise can now assist even these with little laser chopping expertise to be taught what an environment friendly, dependable laser chopping course of appears to be like like. When a store buys its first system, operators quickly achieve a way for what’s wanted to maintain an automatic chopping course of productive and dependable. They see how materials strikes all through the system, they usually work with intuitive software program to make sure the automation can run with out anybody current. “Earlier than lengthy, they will take a look at a nest and know what it must run unattended,” Plourde stated.
4. Foster Productive Dialog
“Expertise has progressed considerably,” Plourde stated, “however, in fact, the true world isn’t excellent.” This, he stated, is the place the ultimate foundational component—communication—comes into play.
Plourde recalled that in his time working at a fab store, having operators speaking with programmers was baked into store procedures. As only one instance, laser operators arriving on second shift would have fast stand-up conferences with the first-shift operators concerning the night’s work. Does every part look steady? Do tabbing methods account for the consequences of distortion and the wants of downstream operations?
Clever software program and intuitive controls have made laser chopping simpler to be taught and optimize, particularly relating to tabbing and toolpath particulars. Even so, the necessity for efficient communication stays.
Describing how fabricators can begin their laser automation journey, Plourde returned to the significance of steady enchancment, together with environment friendly circulation of knowledge. “How do programmers and operators talk, and the way are they sending work to the laser? Are operators on the primary shift speaking to operators on the second shift? Did they guarantee every part is in working order? Are there established finest practices in tabbing? And the way are remnants dealt with?”
Such communication, he stated, lays the groundwork for dependable blanking automation that may develop with a fabricator’s evolving product combine. Speaking with others up and down the worth stream, operators understand the implications of microtabbing and edge high quality, and the worth of eliminating secondary processes like deburring. And so they understand that laser chopping actually isn’t “full” till it’s stacked and prepared for the following main downstream operation.

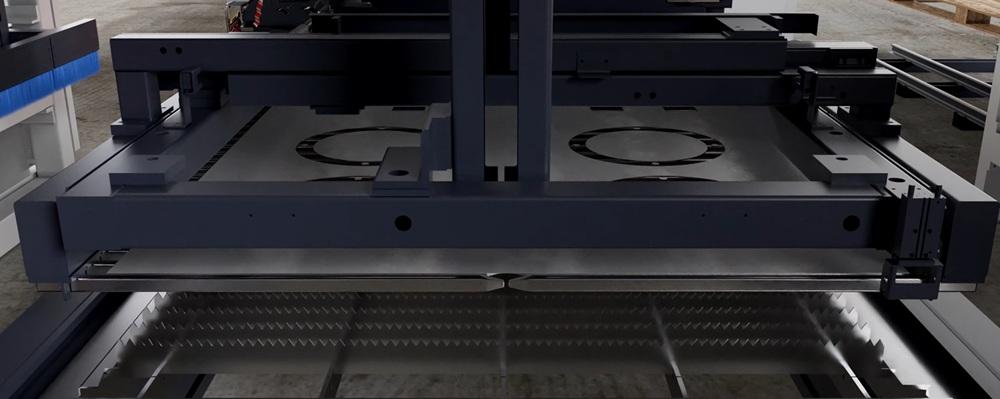

FIGURE 3. On this automated setup, contact sensors confirm sheet thickness, making certain the proper materials is delivered to the laser chopping desk.
Liberating the laser chopping constraint is all about conserving materials on the transfer whereas making the most effective use of expert personnel and not counting on a military of handbook laborers to load materials and denest elements. Illustrating this idea, Plourde once more considered his time as a laser operator, speaking with programmers, schedulers, and different shift operators. His objective was to maintain the machine working and materials flowing.
“I’d typically denest proper off the shuttle desk, if I may end earlier than the machine stopped chopping the following job. Different instances, I’d use a crane to take away the minimize nest. It was all about conserving the machine working.”
He added that the necessity to preserve lasers working hasn’t modified, and it rings very true for laser operators managing automation. Solely now, automation handles the heavy lifting—actually. “Automation immediately retains that laser working and your elements flowing,” he stated. “With that, you’re set to develop.”
